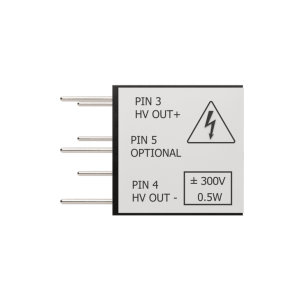

AEQ Series – Ultra Miniature High Voltage Converters
The AEQ series of ultra-miniature UL approved isolated single or dual output DC to DC converters supply up to 600 VDC at 0.5 Watts of output power from an input voltage of +5 VDC.
The small size of the units and ease of control make the AEQ series optimal for hand-held devices, portable equipment, and other small high-voltage projects.
Typical Applications
- Mass spectrometry
- Gas chromatography
- Spectrometers
- PZT drivers
- Flat-panel displays
- Fiber-optic telecom detectors
- Particle physics detectors
Products
Data Sheets
Technical Information
Products
| Model Number | Description | Input | Output | Output Power (W) |
| AEQ5-100FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 100 V (5.00 mA) | 0.5 |
| AEQ5-200FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 200 V (2.5 mA) | 0.5 |
| AEQ5-300FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 300 V (1.67 mA) | 0.5 |
| AEQ5-400FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 400 V (1.25 mA) | 0.5 |
| AEQ5-500FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 500 V (1.00 mA) | 0.5 |
| AEQ5-600FL0.5 | Floating / Reversible | 5.0 V (<250 mA) | 600 V (0.833 mA) | 0.5 |
| AEQ5-50BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±50 V (5.00 mA) | 0.5 |
| AEQ5-100BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±100 V (2.5 mA) | 0.5 |
| AEQ5-150BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±150 V (1.67 mA) | 0.5 |
| AEQ5-200BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±200 V (1.25 mA) | 0.5 |
| AEQ5-250BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±250 V (1.00 mA) | 0.5 |
| AEQ5-300BP0.5 | Dual polarity with CT | 5.0 V (<250 mA) | ±300 V (0.833 mA) | 0.5 |
| AEQ5-100FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 100 V (12.50 mA) | 1.25 |
| AEQ5-200FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 200 V (6.25 mA) | 1.25 |
| AEQ5-300FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 300 V (4.16 mA) | 1.25 |
| AEQ5-400FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 400 V (3.12 mA) | 1.25 |
| AEQ5-500FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 500 V (2.50 mA) | 1.25 |
| AEQ5-600FL1.25 | Floating / Reversible | 5.0 V (<500 mA) | 600 V (2.08 mA) | 1.25 |
| AEQ5-50BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±50 V (12.25 mA) | 1.25 |
| AEQ5-100BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±100 V (6.25 mA) | 1.25 |
| AEQ5-150BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±150 V (4.16 mA) | 1.25 |
| AEQ5-200BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±200 V (3.12 mA) | 1.25 |
| AEQ5-250BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±250 V (2.50 mA) | 1.25 |
| AEQ5-300BP1.25 | Dual polarity with CT | 5.0 V (<500 mA) | ±300 V (2.08 mA) | 1.25 |
| AEQ12-100FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 100 V (5.00 mA) | 0.5 |
| AEQ12-200FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 200 V (2.5 mA) | 0.5 |
| AEQ12-300FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 300 V (1.67 mA) | 0.5 |
| AEQ12-400FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 400 V (1.25 mA) | 0.5 |
| AEQ12-500FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 500 V (1.00 mA) | 0.5 |
| AEQ12-600FL0.5 | Floating / Reversible | 12.0 V (<250 mA) | 600 V (0.833 mA) | 0.5 |
| AEQ12-50BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±50 V (5.00 mA) | 0.5 |
| AEQ12-100BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±100 V (2.5 mA) | 0.5 |
| AEQ12-150BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±150 V (1.67 mA) | 0.5 |
| AEQ12-200BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±200 V (1.25 mA) | 0.5 |
| AEQ12-250BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±250 V (1.00 mA) | 0.5 |
| AEQ12-300BP0.5 | Dual polarity with CT | 12.0 V (<250 mA) | ±300 V (0.833 mA) | 0.5 |
| AEQ12-100FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 100 V (12.50 mA) | 1.25 |
| AEQ12-200FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 200 V (6.25 mA) | 1.25 |
| AEQ12-300FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 300 V (4.16 mA) | 1.25 |
| AEQ12-400FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 400 V (3.12 mA) | 1.25 |
| AEQ12-500FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 500 V (2.50 mA) | 1.25 |
| AEQ12-600FL1.25 | Floating / Reversible | 12.0 V (<500 mA) | 600 V (2.08 mA) | 1.25 |
| AEQ12-50BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±50 V (12.25 mA) | 1.25 |
| AEQ12-100BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±100 V (6.25 mA) | 1.25 |
| AEQ12-150BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±150 V (4.16 mA) | 1.25 |
| AEQ12-200BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±200 V (3.12 mA) | 1.25 |
| AEQ12-250BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±250 V (2.50 mA) | 1.25 |
| AEQ12-300BP1.25 | Dual polarity with CT | 12.0 V (<500 mA) | ±300 V (2.08 mA) | 1.25 |
Data Sheets
AEQ Series DatasheetTechnical Information
Input Voltage (±5% recommended) Output Power Output Voltage Ripple ≤1% | Input Current <150mA (No Load), <250mA (Full Load) Load Voltage Regulation 30% Temperature Coefficient 200 PPM @ 25°C, 500 PPM when swept from -25 to 70°C PPM/°C | HV-Output Isolation ±1500V (input pins to output pins) |
