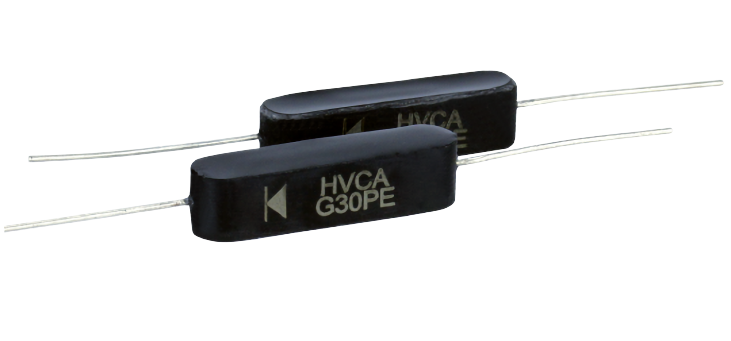

Axial Lead Rectifier Assemblies
Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Ultra-fast reverse recovery time
- High forward current rating
- RoHS compliant to Directive 2011/65/EC
Products
Data Sheets
Products
GPE Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| G20PE | 20000 | 35 | 15 | 3 | 100 |
| G25PE | 25000 | 42 | 15 | 3 | 100 |
| G30PE | 30000 | 48 | 15 | 3 | 100 |
RHV Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| RHV15 | 15000 | 35 | 25 | 3 | 100 |
| RHV20 | 20000 | 55 | 25 | 3 | 100 |
| RHV25 | 25000 | 55 | 25 | 3 | 100 |
| RHV30 | 30000 | 70 | 25 | 3 | 100 |
| RHV40 | 40000 | 110 | 25 | 3 | 100 |
| RHV50 | 50000 | 110 | 25 | 3 | 100 |
| RHV60 | 60000 | 110 | 25 | 3 | 100 |
| RHV90 | 90000 | 165 | 25 | 3 | 100 |
| RHV120 | 120000 | 220 | 25 | 3 | 100 |
| RHV150 | 150000 | 275 | 25 | 3 | 100 |
BCHV Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| BCHV08 | 8000 | 10 | 100 | 20 | – |
| BCHV10 | 10000 | 12 | 100 | 20 | – |
| BCHV12 | 12000 | 13 | 100 | 20 | – |
| BCHV15 | 15000 | 16 | 100 | 20 | – |
| BCHV20 | 20000 | 24 | 100 | 20 | – |
| BCHV25 | 25000 | 32 | 100 | 20 | – |
| BCHV30 | 30000 | 32 | 100 | 20 | – |
| BCHV35 | 35000 | 39 | 100 | 20 | – |
| BCHV40 | 40000 | 48 | 100 | 20 | – |
| BCHV50 | 50000 | 64 | 100 | 20 | – |
| BCHV60 | 60000 | 64 | 100 | 20 | – |
RTHV Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| RTHV08 | 8000 | 22 | 100 | 10 | 100 |
| RTHV10 | 10000 | 22 | 100 | 10 | 100 |
| RTHV15 | 15000 | 26 | 100 | 10 | 100 |
| RTHV20 | 20000 | 44 | 100 | 10 | 100 |
| RTHV25 | 25000 | 52 | 100 | 10 | 100 |
| RTHV30 | 30000 | 52 | 100 | 10 | 100 |
| RTHV40 | 40000 | 78 | 100 | 10 | 100 |
| RTHV45 | 45000 | 78 | 100 | 10 | 100 |
| RTHV50 | 50000 | 105 | 100 | 10 | 100 |
| RTHV60 | 60000 | 105 | 100 | 10 | 100 |
| RTHV80 | 80000 | 140 | 100 | 10 | 100 |
RSUF Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| RSUF2 | 2000 | 2.6 | 650 | 10 | 35 |
| RSUF3 | 3000 | 3.9 | 650 | 10 | 35 |
| RSUF5 | 5000 | 6.5 | 550 | 10 | 35 |
| RSUF7 | 7000 | 9.1 | 500 | 10 | 35 |
RSUFH Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (mA) | Surge Current (A) | Rev. Recovery Time (nS) |
| RSUFH12 | 1200 | 3.6 | 1500 | 50 | 35 |
| RSUFH18 | 1800 | 5.4 | 1500 | 50 | 35 |
| RSUFH24 | 2400 | 7.2 | 1250 | 50 | 35 |
| RSUFH36 | 3600 | 10.8 | 1250 | 50 | 35 |
| RSUFH42 | 4200 | 12.6 | 1250 | 50 | 35 |
