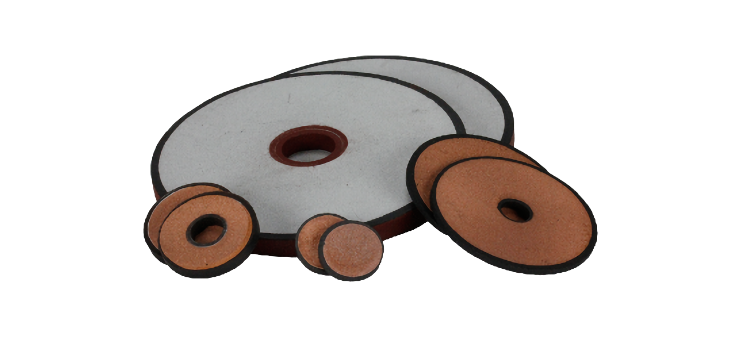

Bare Disc Surge Suppressors
Our silicon carbide suppressor discs and assemblies suitable for protecting components from AC & DC voltage spikes.
- Capable of handling long pulses, 100-400 msec
- Fast response time 5-10 nanoseconds
- High body temp. operation, continuous 110°C
- Large mass device and consequently high energy
Products
Data Sheets
Products
| Part # | VR in kV | IIMP in kA | IR in uA | Tmax in mm |
| ARD32X3 | 0.28 | 10 | 150 | 3±0.2 |
| ARD32X6 | 0.50 | 10 | 150 | 6±0.3 |
| ARD32X21 | 3 | 65 | 150 | 21±0.5 |
| ARD32X31 | 4.50 | 65 | 150 | 31±1 |
| ARD32X42 | 6 | 65 | 150 | 5100 |
| ARD35X3 | 0.28 | 10 | 150 | 3±0.2 |
| ARD35X6 | 0.50 | 10 | 150 | 6±0.3 |
| ARD35X21 | 3 | 65 | 150 | 21±0.5 |
| ARD35X31 | 4.50 | 65 | 150 | 31±1 |
| ARD35X42 | 6 | 65 | 150 | 42±1 |
| ARD40X21 | 3 | 100 | 160 | 21±0.5 |
| ARD40X31 | 4.50 | 100 | 160 | 31±1 |
| ARD46X21 | 3 | 100 | 170 | 21±0.5 |
| ARD46X31 | 4.50 | 100 | 170 | 31±1 |
| ARD48X21 | 3 | 100 | 170 | 21±0.5 |
| ARD48X31 | 4.50 | 100 | 170 | 31±1 |
| ARD52X21 | 3 | 100 | 180 | 21±0.5 |
| ARD52X31 | 4.50 | 100 | 180 | 31±1 |
| ARD62X21 | 3 | 100 | 200 | 21±0.5 |
| ARD62X31 | 4.50 | 100 | 200 | 31±1 |
