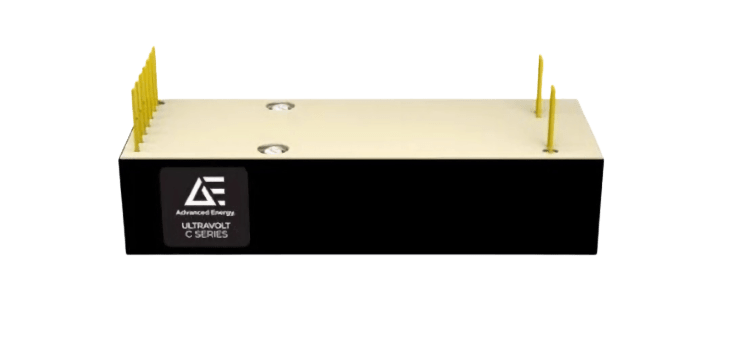

C Series - High Voltage Power Supply

The C series includes seven models ranging from 125 to 6,000 VDC of maximum high voltage power. They C series models are available in single-output positive or negative polarities. From a 24 VDC input, access up to 30 W of fast-rise charging power with less than 1% overshoot. Choose from PCB or chassis mounts and select mechanical and electrical performance options to meet your specific application needs.

Typical Applications

Cap-charging, HV amplifier bias
Pulsed power, HV pulse generator bias
Test equipment
Mass spectrometry
Automated test equipment (ATE)
Lasers and electro-optics

Products

Data Sheets

Technical Information

Products


Part Number	Max. Voltage (Vdc)	Input Voltage (Vdc)	Max. Power (W)	Current (mA)	Ripple (@ 100% HVout. Vpp)	Temp. Coefficient (ppm per °C)
1/8C24-x20	125	24	20	160	<1.0	<50
1/8C24-P20	125	24	20	160	<1.0	<50
1/8C24-N20	125	24	20	160	<1.0	<50
1/8C24-P20-E	125	24	20	160	<1.0	<50
1/8C24-N20-E	125	24	20	160	<1.0	<50
1/8C24-P20-C	125	24	20	160	<1.0	<50
1/8C24-N20-C	125	24	20	160	<1.0	<50
1/8C24-P20-H	125	24	20	160	<1.0	<50
1/8C24-N20-H	125	24	20	160	<1.0	<50
1/8C24-P20-M	125	24	20	160	<1.0	<50
1/8C24-N20-M	125	24	20	160	<1.0	<50
1/8C24-P20-25PPM	125	24	20	160	<1.0	<25
1/8C24-N20-25PPM	125	24	20	160	<1.0	<25

1/8C24-x30	125	24	30	240	<1.0	<50
1/8C24-N30	125	24	30	240	<1.0	<50
1/8C24-P30	125	24	30	240	<1.0	<50
1/8C24-N30-E	125	24	30	240	<1.0	<50
1/8C24-P30-E	125	24	30	240	<1.0	<50
1/8C24-N30-C	125	24	30	240	<1.0	<50
1/8C24-P30-C	125	24	30	240	<1.0	<50
1/8C24-N30-H	125	24	30	240	<1.0	<50
1/8C24-P30-H	125	24	30	240	<1.0	<50
1/8C24-N30-M	125	24	30	240	<1.0	<50
1/8C24-P30-M	125	24	30	240	<1.0	<50
1/8C24-N30-25PPM	125	24	30	240	<1.0	<25
1/8C24-P30-25PPM	125	24	30	240	<1.0	<25

1/4C24-x20	250	24	20	80	<1.0	<50
1/4C24-P20	250	24	20	80	<1.0	<50
1/4C24-N20	250	24	20	80	<1.0	<50
1/4C24-P20-E	250	24	20	80	<1.0	<50
1/4C24-N20-E	250	24	20	80	<1.0	<50
1/4C24-P20-C	250	24	20	80	<1.0	<50
1/4C24-N20-C	250	24	20	80	<1.0	<50
1/4C24-P20-H	250	24	20	80	<1.0	<50
1/4C24-N20-H	250	24	20	80	<1.0	<50
1/4C24-P20-M	250	24	20	80	<1.0	<50
1/4C24-N20-M	250	24	20	80	<1.0	<50
1/4C24-P20-25PPM	250	24	20	80	<1.0	<25
1/4C24-N20-25PPM	250	24	20	80	<1.0	<25

1/4C24-x30	250	24	30	120	<1.0	<50
1/4C24-N30	250	24	30	120	<1.0	<50
1/4C24-P30	250	24	30	120	<1.0	<50
1/4C24-N30-E	250	24	30	120	<1.0	<50
1/4C24-P30-E	250	24	30	120	<1.0	<50
1/4C24-N30-C	250	24	30	120	<1.0	<50
1/4C24-P30-C	250	24	30	120	<1.0	<50
1/4C24-N30-H	250	24	30	120	<1.0	<50
1/4C24-P30-H	250	24	30	120	<1.0	<50
1/4C24-N30-M	250	24	30	120	<1.0	<50
1/4C24-P30-M	250	24	30	120	<1.0	<50
1/4C24-N30-25PPM	250	24	30	120	<1.0	<25
1/4C24-P30-25PPM	250	24	30	120	<1.0	<25

1/2C24-x20	500	24	20	40	<1.0	<50
1/2C24-P20	500	24	20	40	<1.0	<50
1/2C24-N20	500	24	20	40	<1.0	<50
1/2C24-P20-E	500	24	20	40	<1.0	<50
1/2C24-N20-E	500	24	20	40	<1.0	<50
1/2C24-P20-C	500	24	20	40	<1.0	<50
1/2C24-N20-C	500	24	20	40	<1.0	<50
1/2C24-P20-H	500	24	20	40	<1.0	<50
1/2C24-N20-H	500	24	20	40	<1.0	<50
1/2C24-P20-M	500	24	20	40	<1.0	<50
1/2C24-N20-M	500	24	20	40	<1.0	<50
1/2C24-P20-25PPM	500	24	20	40	<1.0	<25
1/2C24-N20-25PPM	500	24	20	40	<1.0	<25

1/2C24-x30	500	24	30	60	<1.0	<50
1/2C24-N30	500	24	30	60	<1.0	<50
1/2C24-P30	500	24	30	60	<1.0	<50
1/2C24-N30-E	500	24	30	60	<1.0	<50
1/2C24-P30-E	500	24	30	60	<1.0	<50
1/2C24-N30-C	500	24	30	60	<1.0	<50
1/2C24-P30-C	500	24	30	60	<1.0	<50
1/2C24-N30-H	500	24	30	60	<1.0	<50
1/2C24-P30-H	500	24	30	60	<1.0	<50
1/2C24-N30-M	500	24	30	60	<1.0	<50
1/2C24-P30-M	500	24	30	60	<1.0	<50
1/2C24-N30-25PPM	500	24	30	60	<1.0	<25
1/2C24-P30-25PPM	500	24	30	60	<1.0	<25

1C24-x20	1000	24	20	20	<1.0	<50
1C24-P20	1000	24	20	20	<1.0	<50
1C24-N20	1000	24	20	20	<1.0	<50
1C24-P20-E	1000	24	20	20	<1.0	<50
1C24-N20-E	1000	24	20	20	<1.0	<50
1C24-P20-C	1000	24	20	20	<1.0	<50
1C24-N20-C	1000	24	20	20	<1.0	<50
1C24-P20-H	1000	24	20	20	<1.0	<50
1C24-N20-H	1000	24	20	20	<1.0	<50
1C24-P20-M	1000	24	20	20	<1.0	<50
1C24-N20-M	1000	24	20	20	<1.0	<50
1C24-P20-25PPM	1000	24	20	20	<1.0	<25
1C24-N20-25PPM	1000	24	20	20	<1.0	<25

1C24-x30	1000	24	30	30	<1.0	<50
1C24-N30	1000	24	30	30	<1.0	<50
1C24-P30	1000	24	30	30	<1.0	<50
1C24-N30-E	1000	24	30	30	<1.0	<50
1C24-P30-E	1000	24	30	30	<1.0	<50
1C24-N30-C	1000	24	30	30	<1.0	<50
1C24-P30-C	1000	24	30	30	<1.0	<50
1C24-N30-H	1000	24	30	30	<1.0	<50
1C24-P30-H	1000	24	30	30	<1.0	<50
1C24-N30-M	1000	24	30	30	<1.0	<50
1C24-P30-M	1000	24	30	30	<1.0	<50
1C24-N30-25PPM	1000	24	30	30	<1.0	<25
1C24-P30-25PPM	1000	24	30	30	<1.0	<25

2C24-x20	2000	24	20	10	<1.0	<50
2C24-P20	2000	24	20	10	<1.0	<50
2C24-N20	2000	24	20	10	<1.0	<50
2C24-P20-E	2000	24	20	10	<1.0	<50
2C24-N20-E	2000	24	20	10	<1.0	<50
2C24-P20-C	2000	24	20	10	<1.0	<50
2C24-N20-C	2000	24	20	10	<1.0	<50
2C24-P20-H	2000	24	20	10	<1.0	<50
2C24-N20-H	2000	24	20	10	<1.0	<50
2C24-P20-M	2000	24	20	10	<1.0	<50
2C24-N20-M	2000	24	20	10	<1.0	<50
2C24-P20-25PPM	2000	24	20	10	<1.0	<25
2C24-N20-25PPM	2000	24	20	10	<1.0	<25

2C24-x30	2000	24	30	15	<1.0	<50
2C24-N30	2000	24	30	15	<1.0	<50
2C24-P30	2000	24	30	15	<1.0	<50
2C24-N30-E	2000	24	30	15	<1.0	<50
2C24-P30-E	2000	24	30	15	<1.0	<50
2C24-N30-C	2000	24	30	15	<1.0	<50
2C24-P30-C	2000	24	30	15	<1.0	<50
2C24-N30-H	2000	24	30	15	<1.0	<50
2C24-P30-H	2000	24	30	15	<1.0	<50
2C24-N30-M	2000	24	30	15	<1.0	<50
2C24-P30-M	2000	24	30	15	<1.0	<50
2C24-N30-25PPM	2000	24	30	15	<1.0	<25
2C24-P30-25PPM	2000	24	30	15	<1.0	<25

4C24-x20	4000	24	20	5	<1.0	<50
4C24-P20	4000	24	20	5	<1.0	<50
4C24-N20	4000	24	20	5	<1.0	<50
4C24-P20-E	4000	24	20	5	<1.0	<50
4C24-N20-E	4000	24	20	5	<1.0	<50
4C24-P20-C	4000	24	20	5	<1.0	<50
4C24-N20-C	4000	24	20	5	<1.0	<50
4C24-P20-H	4000	24	20	5	<1.0	<50
4C24-N20-H	4000	24	20	5	<1.0	<50
4C24-P20-M	4000	24	20	5	<1.0	<50
4C24-N20-M	4000	24	20	5	<1.0	<50
4C24-P20-25PPM	4000	24	20	5	<1.0	<25
4C24-N20-25PPM	4000	24	20	5	<1.0	<25

4C24-x30	4000	24	30	7.5	<1.0	<50
4C24-N30	4000	24	30	7.5	<1.0	<50
4C24-P30	4000	24	30	7.5	<1.0	<50
4C24-N30-E	4000	24	30	7.5	<1.0	<50
4C24-P30-E	4000	24	30	7.5	<1.0	<50
4C24-N30-C	4000	24	30	7.5	<1.0	<50
4C24-P30-C	4000	24	30	7.5	<1.0	<50
4C24-N30-H	4000	24	30	7.5	<1.0	<50
4C24-P30-H	4000	24	30	7.5	<1.0	<50
4C24-N30-M	4000	24	30	7.5	<1.0	<50
4C24-P30-M	4000	24	30	7.5	<1.0	<50
4C24-N30-25PPM	4000	24	30	7.5	<1.0	<25
4C24-P30-25PPM	4000	24	30	7.5	<1.0	<25

6C24-x20	6000	24	20	3.3	<1.0	<50
6C24-P20	6000	24	20	3.3	<1.0	<50
6C24-N20	6000	24	20	3.3	<1.0	<50
6C24-P20-E	6000	24	20	3.3	<1.0	<50
6C24-N20-E	6000	24	20	3.3	<1.0	<50
6C24-P20-C	6000	24	20	3.3	<1.0	<50
6C24-N20-C	6000	24	20	3.3	<1.0	<50
6C24-P20-H	6000	24	20	3.3	<1.0	<50
6C24-N20-H	6000	24	20	3.3	<1.0	<50
6C24-P20-M	6000	24	20	3.3	<1.0	<50
6C24-N20-M	6000	24	20	3.3	<1.0	<50
6C24-P20-25PPM	6000	24	20	3.3	<1.0	<25
6C24-N20-25PPM	6000	24	20	3.3	<1.0	<25

6C24-x30	6000	24	30	5	<1.0	<50
6C24-N30	6000	24	30	5	<1.0	<50
6C24-P30	6000	24	30	5	<1.0	<50
6C24-N30-E	6000	24	30	5	<1.0	<50
6C24-P30-E	6000	24	30	5	<1.0	<50
6C24-N30-C	6000	24	30	5	<1.0	<50
6C24-P30-C	6000	24	30	5	<1.0	<50
6C24-N30-H	6000	24	30	5	<1.0	<50
6C24-P30-H	6000	24	30	5	<1.0	<50
6C24-N30-M	6000	24	30	5	<1.0	<50
6C24-P30-M	6000	24	30	5	<1.0	<50
6C24-N30-25PPM	6000	24	30	5	<1.0	<25
6C24-P30-25PPM	6000	24	30	5	<1.0	<25
