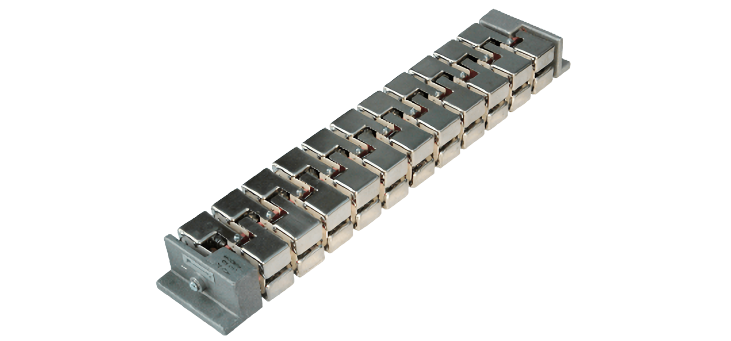

Column Rectifiers
Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Modular assembly design
- Very high voltage rating
Products
Data Sheets
Products
1HV12 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Reverse Current (µA) | Surge Current (A) |
| 1HV12R10A | 24000 | 12 | 20 | 1500 | 370 |
| 1HV12R20A | 48000 | 12 | 40 | 1500 | 370 |
| 1HV12R30A | 72000 | 12 | 60 | 1500 | 370 |
| 1HV12R40A | 96000 | 12 | 80 | 1500 | 370 |
| 1HV12R50A | 120000 | 12 | 100 | 1500 | 370 |
| 1HV12R60A | 144000 | 12 | 120 | 1500 | 370 |
| 1HV12R70A | 168000 | 12 | 140 | 1500 | 370 |
| 1HV12R80A | 192000 | 12 | 160 | 1500 | 370 |
| 1HV12R90A | 216000 | 12 | 180 | 1500 | 370 |
2HV12 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Reverse Current (µA) | Surge Current (A) |
| 2HV12R10A | 24000 | 12.5 | 20 | 1500 | 370 |
| 2HV12R20A | 48000 | 12.5 | 40 | 1500 | 370 |
| 2HV12R30A | 72000 | 12.5 | 60 | 1500 | 370 |
| 2HV12R40A | 96000 | 12.5 | 80 | 1500 | 370 |
| 2HV12R50A | 120000 | 12.5 | 100 | 1500 | 370 |
| 2HV12R60A | 144000 | 12.5 | 120 | 1500 | 370 |
| 2HV12R70A | 168000 | 12.5 | 140 | 1500 | 370 |
3HVM Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Reverse Current (µA) | Surge Current (A) |
| 3HV12M10A | 24000 | 36 | 20 | 4000 | 1500 |
| 3HV16M10A | 32000 | 36 | 20 | 5300 | 1500 |
| 3HV12M20A | 48000 | 36 | 40 | 4000 | 1500 |
| 3HV16M20A | 64000 | 36 | 40 | 5300 | 1500 |
| 3HV12M30A | 72000 | 36 | 60 | 4000 | 1500 |
| 3HV12M40A | 96000 | 36 | 80 | 4000 | 1500 |
| 3HV16M30A | 96000 | 36 | 60 | 5300 | 1500 |
| 3HV16M40A | 128000 | 36 | 80 | 5300 | 1500 |
3HVP Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Forward Voltage Drop (V) | Avg. Forward Current (A) | Reverse Current (µA) | Surge Current (A) |
| 3HV12P10A | 24000 | 33 | 20 | 4000 | 1050 |
| 3HV16P10A | 32000 | 33 | 20 | 5300 | 1050 |
| 3HV12P20A | 48000 | 33 | 40 | 4000 | 1050 |
| 3HV16P20A | 64000 | 33 | 40 | 5300 | 1050 |
| 3HV12P30A | 72000 | 33 | 60 | 4000 | 1050 |
| 3HV12P40A | 96000 | 33 | 80 | 4000 | 1050 |
| 3HV16P30A | 96000 | 33 | 60 | 5300 | 1050 |
| 3HV16P40A | 128000 | 33 | 80 | 5300 | 1050 |
