High Voltage Diodes & Assemblies
By maintaining full control over the design and build of everything we sell, we can offer everything as custom, from the lowest level component, through the full system. Our engineers are involved in every product recommendation we make. When we don’t have a perfect offering, they are already primed and ready to help design something new. We also have all of the necessary testing facilities to aid in the development and design process, ensuring that everything we ship has been tested to meet the requirements it was designed for. If you would like something changed or something completely new, just ask, we’ll be more than happy to work with you to meet your exact requirements.
Features Diodes - UX Series:
• Ultra-Fast Recovery Time
• High Peak Reverse Voltage
• Flammable Classification UL94V-0
• RoHS compliant to Directive 2011/65/EC
Features Optocoupler - Optical Switch Diodes:
• Integrated low voltage LED drivers with 10kV photo detector diode
• Black casing, light tight packaging
• RoHS compliant to Directive 2011/65/EC
Features Rectifiers - Modular "Hi-Bell" Series
• High voltage, high current capability
• Large plated brass base-plate heat sink on cathode side
• Molded encapsulation, ANSI/UL94 V-0 rated material
Features HV Diode Assemblies - Spiral Rectifiers:
• Compact, modular spiral design
• MOV compensated diodes
Features High Current Assemblies - Modular 3 Phase SCR:
• High output current rating
• Designed for 3-phase applications
High Voltage Axial Lead Diodes
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Max .Surge Current | Reverse Recovery Time | |
| XOE Axial Lead Diodes | 2 - 30 kV | 100 - 350 mA | 5.4 - 36 V | 30 A | 70 - 80 nS |
| Axial Lead Low Current | 2 - 40 kV | 20 - 75 mA | 8 - 54 V | 3 A | 20 - 100 nS |
| Axial Lead Power Diode | 1 - 35 kV | 60 - 2500 mA | 2 - 52 V | 300 A | 40 - 120 nS |
| Axial Lead High Temp. | 3 - 7 kV | 25 - 800 mA | 3.2 - 25 V | 30 A | 100 - 300 nS |
High Voltage Surface Mount Diodes (SMD)
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Max .Surge Current | Reverse Recovery Time | |
| Surface Mount Diodes | 3 - 30 kV | 40 - 1000 mA | 3.2 - 55 V | 20 A | 40 - 100 nS |
Optocoupler / Optical Switch Diodes
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Max .Surge Current | |
| OPC Series | 10 kV | 80 mA | 12 V | 10 A |
High Voltage Rectifier Assemblies
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Max .Surge Current | Reverse Recovery Time | |
| X-ray Board Rectifiers | 75 - 600 kV | 0 - 0.22 A | 110 - 1050 V | 20 A | 100 nS |
| Axial Lead Flat Pack | 2.5 - 30 kV | 0.5 - 2 A | 2.4 - 44 V | 150 A | 35 - 250 nS |

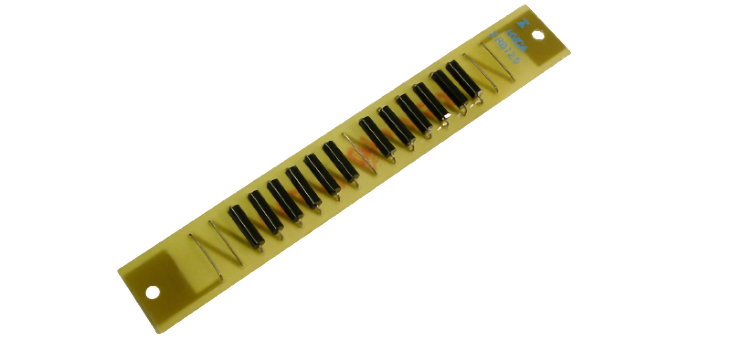

| Axial Lead Assemblies | 8 - 150 kV | 0.025 - 1.5 A | 2.6 - 275 V | 50 A | 35 - 100 nS |
| Full Wave Bridge | 2 - 20 kV | 0.25 - 5 A | 4.8 - 32 V | 150 A | 35 - 300 nS |
| Modular Hi-Bel | 1.5 - 20 kV | 0.6 - 10 A | 2 - 22 V | 400 A | 35 - 250 nS |
| Blocks Insert Mounting | 3 - 75 kV | 0.5 - 10 A | 4.5 - 100 V | 950 A | 35 - 350 nS |
| Blocks Mounting Slots | 3 - 50 kV | 0.4 - 3.6 A | 4.5 - 70 V | 400 A | 35 - 350 nS |
| High Voltage Modules | 8 - 15 kV | 0.275 - 1.1 A | 8 - 37.5 V | 80 A | 75 nS |
High Voltage Diode Assemblies
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Surge Current | |
| Channel Stack Rectifiers | 3 - 145 kV | 1 - 33 A | 3.3 - 208 V | 150 - 3000 A |
| Column Rectifiers | 24 - 216 kV | 3 - 8 A | 20 - 180 V | 370 - 1500 A |
| Full Wave Bridge | 4 - 48 kV | 4 - 40 A | 4 - 48 V | 400 - 1500 A |
| Spiral Rectifiers | 8 - 56 kV | 3.25 - 12 A | 8 - 56 V | 370 - 1500 A |
High Current Assemblies
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Surge Current | |
| Modular Three Phase SCR Assemblies | 0.4 - 1.2 kV | 47 - 160 A | 1.49 - 1.95 V | 1310 - 5350 A |
| Rectipoint Silicon Power Rectifiers | 0.2 - 1.6 kV | 14 - 65 A | 1.2 V | 370 - 1500 A |
| Single & Three Phase High Current Bridges | 0.4 - 1.6 kV | 70 - 700 A | 1.5 V | 500 - 10960 A |
| Water Cooled Assemblies | 1 - 2.6 kV | - | - | 7.5 - 60 kA |
