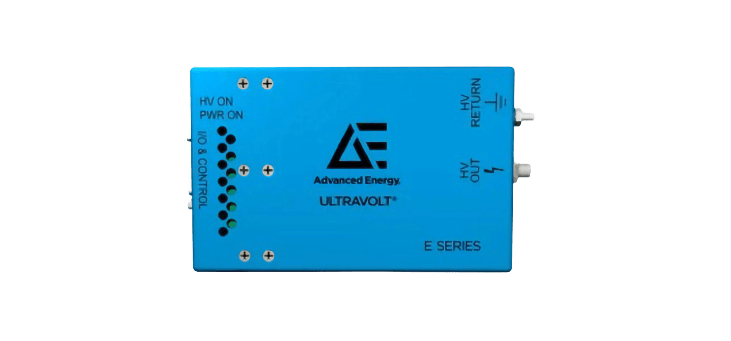

E Series - High Precision High Voltage Power Supply
Our E series includes six models ranging from 1000 to 15,000 VDC maximum high voltage power and are available in single-output positive or negative polarities. From a 24 VDC input, the E series delivers up to 30 W of low noise, highly controllable and stable power. Controlled using a differential analog interface, a selection of electrical and mechanical integration options can be factory-configured to meet specific application needs.
Typical Applications
- Bias supplies
- Mass spectrometry
- SEM/FIB
- Electron beams
- Ion beams
Products
Data Sheets
Technical Information
Products
| Part Number | Max. Voltage (Vdc) | Input Voltage (Vdc) | Max. Power (W) | Current (mA) | Ripple (ppm) | Temp. Coefficient (ppm per °C) |
| 1E24-x4-25PPM | 1000 | 24 | 4 | 4 | <10 | <25 |
| 1E24-P4-25PPM | 1000 | 24 | 4 | 4 | <10 | <25 |
| 1E24-N4-25PPM | 1000 | 24 | 4 | 4 | <10 | <25 |
| 1E24-P4-25PPM-SHV-5KV | 1000 | 24 | 4 | 4 | <10 | <25 |
| 1E24-N4-25PPM-SHV-5KV | 1000 | 24 | 4 | 4 | <10 | <25 |
| 1E24-P4-10PPM | 1000 | 24 | 4 | 4 | <10 | <10 |
| 1E24-N4-10PPM | 1000 | 24 | 4 | 4 | <10 | <10 |
| 1E24-P4-10PPM-SHV-5KV | 1000 | 24 | 4 | 4 | <10 | <10 |
| 1E24-N4-10PPM-SHV-5KV | 1000 | 24 | 4 | 4 | <10 | <10 |
| 1E24-x20-25PPM | 1000 | 24 | 20 | 20 | <10 | <25 |
| 1E24-P20-25PPM | 1000 | 24 | 20 | 20 | <10 | <25 |
| 1E24-N20-25PPM | 1000 | 24 | 20 | 20 | <10 | <25 |
| 1E24-P20-25PPM-SHV-5KV | 1000 | 24 | 20 | 20 | <10 | <25 |
| 1E24-N20-25PPM-SHV-5KV | 1000 | 24 | 20 | 20 | <10 | <25 |
| 1E24-P20-10PPM | 1000 | 24 | 20 | 20 | <10 | <10 |
| 1E24-N20-10PPM | 1000 | 24 | 20 | 20 | <10 | <10 |
| 1E24-P20-10PPM-SHV-5KV | 1000 | 24 | 20 | 20 | <10 | <10 |
| 1E24-N20-10PPM-SHV-5KV | 1000 | 24 | 20 | 20 | <10 | <10 |
| 1E24-x30-25PPM | 1000 | 24 | 30 | 30 | <10 | <25 |
| 1E24-P30-25PPM | 1000 | 24 | 30 | 30 | <10 | <25 |
| 1E24-N30-25PPM | 1000 | 24 | 30 | 30 | <10 | <25 |
| 1E24-P30-25PPM-SHV-5KV | 1000 | 24 | 30 | 30 | <10 | <25 |
| 1E24-N30-25PPM-SHV-5KV | 1000 | 24 | 30 | 30 | <10 | <25 |
| 1E24-P30-10PPM | 1000 | 24 | 30 | 30 | <10 | <10 |
| 1E24-N30-10PPM | 1000 | 24 | 30 | 30 | <10 | <10 |
| 1E24-P30-10PPM-SHV-5KV | 1000 | 24 | 30 | 30 | <10 | <10 |
| 1E24-N30-10PPM-SHV-5KV | 1000 | 24 | 30 | 30 | <10 | <10 |
| 2E24-x4-25PPM | 2000 | 24 | 4 | 2 | <10 | <25 |
| 2E24-P4-25PPM | 2000 | 24 | 4 | 2 | <10 | <25 |
| 2E24-N4-25PPM | 2000 | 24 | 4 | 2 | <10 | <25 |
| 2E24-P4-25PPM-SHV-5KV | 2000 | 24 | 4 | 2 | <10 | <25 |
| 2E24-N4-25PPM-SHV-5KV | 2000 | 24 | 4 | 2 | <10 | <25 |
| 2E24-P4-10PPM | 2000 | 24 | 4 | 2 | <10 | <10 |
| 2E24-N4-10PPM | 2000 | 24 | 4 | 2 | <10 | <10 |
| 2E24-P4-10PPM-SHV-5KV | 2000 | 24 | 4 | 2 | <10 | <10 |
| 2E24-N4-10PPM-SHV-5KV | 2000 | 24 | 4 | 2 | <10 | <10 |
| 2E24-x20-25PPM | 2000 | 24 | 20 | 10 | <10 | <25 |
| 2E24-P20-25PPM | 2000 | 24 | 20 | 10 | <10 | <25 |
| 2E24-N20-25PPM | 2000 | 24 | 20 | 10 | <10 | <25 |
| 2E24-P20-25PPM-SHV-5KV | 2000 | 24 | 20 | 10 | <10 | <25 |
| 2E24-N20-25PPM-SHV-5KV | 2000 | 24 | 20 | 10 | <10 | <25 |
| 2E24-P20-10PPM | 2000 | 24 | 20 | 10 | <10 | <10 |
| 2E24-N20-10PPM | 2000 | 24 | 20 | 10 | <10 | <10 |
| 2E24-P20-10PPM-SHV-5KV | 2000 | 24 | 20 | 10 | <10 | <10 |
| 2E24-N20-10PPM-SHV-5KV | 2000 | 24 | 20 | 10 | <10 | <10 |
| 2E24-x30-25PPM | 2000 | 24 | 30 | 15 | <10 | <25 |
| 2E24-P30-25PPM | 2000 | 24 | 30 | 15 | <10 | <25 |
| 2E24-N30-25PPM | 2000 | 24 | 30 | 15 | <10 | <25 |
| 2E24-P30-25PPM-SHV-5KV | 2000 | 24 | 30 | 15 | <10 | <25 |
| 2E24-N30-25PPM-SHV-5KV | 2000 | 24 | 30 | 15 | <10 | <25 |
| 2E24-P30-10PPM | 2000 | 24 | 30 | 15 | <10 | <10 |
| 2E24-N30-10PPM | 2000 | 24 | 30 | 15 | <10 | <10 |
| 2E24-P30-10PPM-SHV-5KV | 2000 | 24 | 30 | 15 | <10 | <10 |
| 2E24-N30-10PPM-SHV-5KV | 2000 | 24 | 30 | 15 | <10 | <10 |
| 4E24-x4-25PPM | 4000 | 24 | 4 | 1 | <10 | <25 |
| 4E24-P4-25PPM | 4000 | 24 | 4 | 1 | <10 | <25 |
| 4E24-N4-25PPM | 4000 | 24 | 4 | 1 | <10 | <25 |
| 4E24-P4-25PPM-SHV-5KV | 4000 | 24 | 4 | 1 | <10 | <25 |
| 4E24-N4-25PPM-SHV-5KV | 4000 | 24 | 4 | 1 | <10 | <25 |
| 4E24-P4-10PPM | 4000 | 24 | 4 | 1 | <10 | <10 |
| 4E24-N4-10PPM | 4000 | 24 | 4 | 1 | <10 | <10 |
| 4E24-P4-10PPM-SHV-5KV | 4000 | 24 | 4 | 1 | <10 | <10 |
| 4E24-N4-10PPM-SHV-5KV | 4000 | 24 | 4 | 1 | <10 | <10 |
| 4E24-x20-25PPM | 4000 | 24 | 20 | 5 | <10 | <25 |
| 4E24-P20-25PPM | 4000 | 24 | 20 | 5 | <10 | <25 |
| 4E24-N20-25PPM | 4000 | 24 | 20 | 5 | <10 | <25 |
| 4E24-P20-25PPM-SHV-5KV | 4000 | 24 | 20 | 5 | <10 | <25 |
| 4E24-N20-25PPM-SHV-5KV | 4000 | 24 | 20 | 5 | <10 | <25 |
| 4E24-P20-10PPM | 4000 | 24 | 20 | 5 | <10 | <10 |
| 4E24-N20-10PPM | 4000 | 24 | 20 | 5 | <10 | <10 |
| 4E24-P20-10PPM-SHV-5KV | 4000 | 24 | 20 | 5 | <10 | <10 |
| 4E24-N20-10PPM-SHV-5KV | 4000 | 24 | 20 | 5 | <10 | <10 |
| 4E24-x30-25PPM | 4000 | 24 | 30 | 7.5 | <10 | <25 |
| 4E24-P30-25PPM | 4000 | 24 | 30 | 7.5 | <10 | <25 |
| 4E24-N30-25PPM | 4000 | 24 | 30 | 7.5 | <10 | <25 |
| 4E24-P30-25PPM-SHV-5KV | 4000 | 24 | 30 | 7.5 | <10 | <25 |
| 4E24-N30-25PPM-SHV-5KV | 4000 | 24 | 30 | 7.5 | <10 | <25 |
| 4E24-P30-10PPM | 4000 | 24 | 30 | 7.5 | <10 | <10 |
| 4E24-N30-10PPM | 4000 | 24 | 30 | 7.5 | <10 | <10 |
| 4E24-P30-10PPM-SHV-5KV | 4000 | 24 | 30 | 7.5 | <10 | <10 |
| 4E24-N30-10PPM-SHV-5KV | 4000 | 24 | 30 | 7.5 | <10 | <10 |
| 6E24-x4-25PPM | 6000 | 24 | 4 | 0.67 | <10 | <25 |
| 6E24-P4-25PPM | 6000 | 24 | 4 | 0.67 | <10 | <25 |
| 6E24-N4-25PPM | 6000 | 24 | 4 | 0.67 | <10 | <25 |
| 6E24-P4-25PPM-BNC-10KV | 6000 | 24 | 4 | 0.67 | <10 | <25 |
| 6E24-N4-25PPM-BNC-10KV | 6000 | 24 | 4 | 0.67 | <10 | <25 |
| 6E24-P4-10PPM | 6000 | 24 | 4 | 0.67 | <10 | <10 |
| 6E24-N4-10PPM | 6000 | 24 | 4 | 0.67 | <10 | <10 |
| 6E24-P4-10PPM-BNC-10KV | 6000 | 24 | 4 | 0.67 | <10 | <10 |
| 6E24-N4-10PPM-BNC-10KV | 6000 | 24 | 4 | 0.67 | <10 | <10 |
| 6E24-x20-25PPM | 6000 | 24 | 20 | 3.33 | <10 | <25 |
| 6E24-P20-25PPM | 6000 | 24 | 20 | 3.33 | <10 | <25 |
| 6E24-N20-25PPM | 6000 | 24 | 20 | 3.33 | <10 | <25 |
| 6E24-P20-25PPM-BNC-10KV | 6000 | 24 | 20 | 3.33 | <10 | <25 |
| 6E24-N20-25PPM-BNC-10KV | 6000 | 24 | 20 | 3.33 | <10 | <25 |
| 6E24-P20-10PPM | 6000 | 24 | 20 | 3.33 | <10 | <10 |
| 6E24-N20-10PPM | 6000 | 24 | 20 | 3.33 | <10 | <10 |
| 6E24-P20-10PPM-BNC-10KV | 6000 | 24 | 20 | 3.33 | <10 | <10 |
| 6E24-N20-10PPM-BNC-10KV | 6000 | 24 | 20 | 3.33 | <10 | <10 |
| 6E24-x30-25PPM | 6000 | 24 | 30 | 5 | <10 | <25 |
| 6E24-P30-25PPM | 6000 | 24 | 30 | 5 | <10 | <25 |
| 6E24-N30-25PPM | 6000 | 24 | 30 | 5 | <10 | <25 |
| 6E24-P30-25PPM-BNC-10KV | 6000 | 24 | 30 | 5 | <10 | <25 |
| 6E24-N30-25PPM-BNC-10KV | 6000 | 24 | 30 | 5 | <10 | <25 |
| 6E24-P30-10PPM | 6000 | 24 | 30 | 5 | <10 | <10 |
| 6E24-N30-10PPM | 6000 | 24 | 30 | 5 | <10 | <10 |
| 6E24-P30-10PPM-BNC-10KV | 6000 | 24 | 30 | 5 | <10 | <10 |
| 6E24-N30-10PPM-BNC-10KV | 6000 | 24 | 30 | 5 | <10 | <10 |
| 10E24-x4-25PPM | 10000 | 24 | 4 | 0.4 | <10 | <25 |
| 10E24-P4-25PPM | 10000 | 24 | 4 | 0.4 | <10 | <25 |
| 10E24-N4-25PPM | 10000 | 24 | 4 | 0.4 | <10 | <25 |
| 10E24-P4-25PPM-BNC-10KV | 10000 | 24 | 4 | 0.4 | <10 | <25 |
| 10E24-N4-25PPM-BNC-10KV | 10000 | 24 | 4 | 0.4 | <10 | <25 |
| 10E24-P4-10PPM | 10000 | 24 | 4 | 0.4 | <10 | <10 |
| 10E24-N4-10PPM | 10000 | 24 | 4 | 0.4 | <10 | <10 |
| 10E24-P4-10PPM-BNC-10KV | 10000 | 24 | 4 | 0.4 | <10 | <10 |
| 10E24-N4-10PPM-BNC-10KV | 10000 | 24 | 4 | 0.4 | <10 | <10 |
| 10E24-x15-25PPM | 10000 | 24 | 15 | 1.5 | <10 | <25 |
| 10E24-P15-25PPM | 10000 | 24 | 15 | 1.5 | <10 | <25 |
| 10E24-N15-25PPM | 10000 | 24 | 15 | 1.5 | <10 | <25 |
| 10E24-P15-25PPM-BNC-10KV | 10000 | 24 | 15 | 1.5 | <10 | <25 |
| 10E24-N15-25PPM-BNC-10KV | 10000 | 24 | 15 | 1.5 | <10 | <25 |
| 10E24-P15-10PPM | 10000 | 24 | 15 | 1.5 | <10 | <10 |
| 10E24-N15-10PPM | 10000 | 24 | 15 | 1.5 | <10 | <10 |
| 10E24-P15-10PPM-BNC-10KV | 10000 | 24 | 15 | 1.5 | <10 | <10 |
| 10E24-N15-10PPM-BNC-10KV | 10000 | 24 | 15 | 1.5 | <10 | <10 |
| 10E24-x30-25PPM | 10000 | 24 | 30 | 3 | <10 | <25 |
| 10E24-P30-25PPM | 10000 | 24 | 30 | 3 | <10 | <25 |
| 10E24-N30-25PPM | 10000 | 24 | 30 | 3 | <10 | <25 |
| 10E24-P30-25PPM-BNC-10KV | 10000 | 24 | 30 | 3 | <10 | <25 |
| 10E24-N30-25PPM-BNC-10KV | 10000 | 24 | 30 | 3 | <10 | <25 |
| 10E24-P30-10PPM | 10000 | 24 | 30 | 3 | <10 | <10 |
| 10E24-N30-10PPM | 10000 | 24 | 30 | 3 | <10 | <10 |
| 10E24-P30-10PPM-BNC-10KV | 10000 | 24 | 30 | 3 | <10 | <10 |
| 10E24-N30-10PPM-BNC-10KV | 10000 | 24 | 30 | 3 | <10 | <10 |
| 15E24-x4-25PPM | 15000 | 24 | 4 | 0.27 | <10 | <25 |
| 15E24-P4-25PPM | 15000 | 24 | 4 | 0.27 | <10 | <25 |
| 15E24-N4-25PPM | 15000 | 24 | 4 | 0.27 | <10 | <25 |
| 15E24-P4-10PPM | 15000 | 24 | 4 | 0.27 | <10 | <10 |
| 15E24-N4-10PPM | 15000 | 24 | 4 | 0.27 | <10 | <10 |
| 15E24-x15-25PPM | 15000 | 24 | 15 | 1 | <10 | <25 |
| 15E24-P15-25PPM | 15000 | 24 | 15 | 1 | <10 | <25 |
| 15E24-N15-25PPM | 15000 | 24 | 15 | 1 | <10 | <25 |
| 15E24-P15-10PPM | 15000 | 24 | 15 | 1 | <10 | <10 |
| 15E24-N15-10PPM | 15000 | 24 | 15 | 1 | <10 | <10 |
| 15E24-x30-25PPM | 15000 | 24 | 30 | 2 | <10 | <25 |
| 15E24-P30-25PPM | 15000 | 24 | 30 | 2 | <10 | <25 |
| 15E24-N30-25PPM | 15000 | 24 | 30 | 2 | <10 | <25 |
| 15E24-P30-10PPM | 15000 | 24 | 30 | 2 | <10 | <10 |
| 15E24-N30-10PPM | 15000 | 24 | 30 | 2 | <10 | <10 |
Data Sheets
E Series DatasheetTechnical Information
| Input Voltage 23-30 VDC for full power (24V average) Output Voltage From 0 to 1kV through 0 to 15kV Output Power 4, 20, or 30W of output power | Polarity Available as fixed positive or negative (replace x in part number with -P or -N) Operating Temperature +10 to +45°C case temp. @100% HVout/LOAD Temperature Coefficient +/- 25 ppm as standard (10ppm optional) | Standards UL/cUL recognized component; CE mark (LVD and RoHS) Options -10PPM line/load regulation, stability & temperature coefficient -SHV-5KV high voltage connector -BC-10KV high voltage connector |
