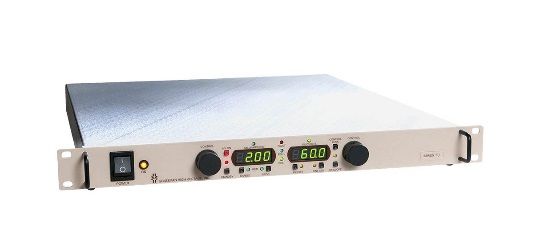

FJ Series - High Voltage Power Supply

The FJ Series of 120 watt high voltage supplies feature flexible embedded controls with low ripple and noise. They are air insulated, fastresponse units, with tight regulation and extremely low arc discharge currents.

Typical Applications

Ion Sources
DC Magnetron Sputtering
Glass/Web Coaters
Glow Discharge

Products

Data Sheets

Technical Information

Products


Series	Max. Output Voltage	Max. Output Current	Max. Output Power	Input Voltage	Ripple better than
FJ1X150	0 – 1 kV	150 mA	120 W	single phase	0.02%
FJ1P150	0 – 1 kV	150 mA	120 W	single phase	0.02%
FJ1N150	0 – 1 kV	150 mA	120 W	single phase	0.02%
FJ1R150	0 – 1 kV	150 mA	120 W	single phase	0.02%

FJ1.5X80	0 – 1.5 kV	80 mA	120 W	single phase	0.02%
FJ1.5P80	0 – 1.5 kV	80 mA	120 W	single phase	0.02%
FJ1.5N80	0 – 1.5 kV	80 mA	120 W	single phase	0.02%
FJ1.5R80	0 – 1.5 kV	80 mA	120 W	single phase	0.02%

FJ2X60	0 – 2 kV	60 mA	120 W	single phase	0.02%
FJ2P60	0 – 2 kV	60 mA	120 W	single phase	0.02%
FJ2N60	0 – 2 kV	60 mA	120 W	single phase	0.02%
FJ2R60	0 – 2 kV	60 mA	120 W	single phase	0.02%

FJ3X40	0 – 3 kV	40 mA	120 W	single phase	0.02%
FJ3P40	0 – 3 kV	40 mA	120 W	single phase	0.02%
FJ3N40	0 – 3 kV	40 mA	120 W	single phase	0.02%
FJ3R40	0 – 3 kV	40 mA	120 W	single phase	0.02%

FJ5X24	0 – 5 kV	24 mA	120 W	single phase	0.02%
FJ5P24	0 – 5 kV	24 mA	120 W	single phase	0.02%
FJ5N24	0 – 5 kV	24 mA	120 W	single phase	0.02%
FJ5R24	0 – 5 kV	24 mA	120 W	single phase	0.02%

FJ6X20	0 – 6 kV	20 mA	120 W	single phase	0.02%
FJ6P20	0 – 6 kV	20 mA	120 W	single phase	0.02%
FJ6N20	0 – 6 kV	20 mA	120 W	single phase	0.02%
FJ6R20	0 – 6 kV	20 mA	120 W	single phase	0.02%

FJ8X15	0 – 8 kV	15 mA	120 W	single phase	0.02%
FJ8P15	0 – 8 kV	15 mA	120 W	single phase	0.02%
FJ8N15	0 – 8 kV	15 mA	120 W	single phase	0.02%
FJ8R15	0 – 8 kV	15 mA	120 W	single phase	0.02%

FJ10X12	0 – 10 kV	12 mA	120 W	single phase	0.02%
FJ10P12	0 – 10 kV	12 mA	120 W	single phase	0.02%
FJ10N12	0 – 10 kV	12 mA	120 W	single phase	0.02%
FJ10R12	0 – 10 kV	12 mA	120 W	single phase	0.02%

FJ12X10	0 – 12 kV	10 mA	120 W	single phase	0.02%
FJ12P10	0 – 12 kV	10 mA	120 W	single phase	0.02%
FJ12N10	0 – 12 kV	10 mA	120 W	single phase	0.02%
FJ12R10	0 – 12 kV	10 mA	120 W	single phase	0.02%

FJ15X8	0 – 15 kV	8 mA	120 W	single phase	0.02%
FJ15P8	0 – 15 kV	8 mA	120 W	single phase	0.02%
FJ15N8	0 – 15 kV	8 mA	120 W	single phase	0.02%
FJ15R8	0 – 15 kV	8 mA	120 W	single phase	0.02%

FJ20X6	0 – 20 kV	6 mA	120 W	single phase	0.02%
FJ20P6	0 – 20 kV	6 mA	120 W	single phase	0.02%
FJ20N6	0 – 20 kV	6 mA	120 W	single phase	0.02%
FJ20R6	0 – 20 kV	6 mA	120 W	single phase	0.02%

FJ25X4.8	0 – 25 kV	4.8 mA	120 W	single phase	0.02%
FJ25P4.8	0 – 25 kV	4.8 mA	120 W	single phase	0.02%
FJ25N4.8	0 – 25 kV	4.8 mA	120 W	single phase	0.02%
FJ25R4.8	0 – 25 kV	4.8 mA	120 W	single phase	0.02%

FJ30X4	0 – 30 kV	4 mA	120 W	single phase	0.02%
FJ30P4	0 – 30 kV	4 mA	120 W	single phase	0.02%
FJ30N4	0 – 30 kV	4 mA	120 W	single phase	0.02%
FJ30R4	0 – 30 kV	4 mA	120 W	single phase	0.02%

FJ40X3	0 – 40 kV	3 mA	120 W	single phase	0.02%
FJ40P3	0 – 40 kV	3 mA	120 W	single phase	0.02%
FJ40N3	0 – 40 kV	3 mA	120 W	single phase	0.02%
FJ40R3	0 – 40 kV	3 mA	120 W	single phase	0.02%

FJ50X2.4	0 – 50 kV	2.4 mA	120 W	single phase	0.02%
FJ50P2.4	0 – 50 kV	2.4 mA	120 W	single phase	0.02%
FJ50N2.4	0 – 50 kV	2.4 mA	120 W	single phase	0.02%
FJ50R2.4	0 – 50 kV	2.4 mA	120 W	single phase	0.02%

FJ60X2	0 – 60 kV	2 mA	120 W	single phase	0.02%
FJ60P2	0 – 60 kV	2 mA	120 W	single phase	0.02%
FJ60N2	0 – 60 kV	2 mA	120 W	single phase	0.02%
FJ60R2	0 – 60 kV	2 mA	120 W	single phase	0.02%
