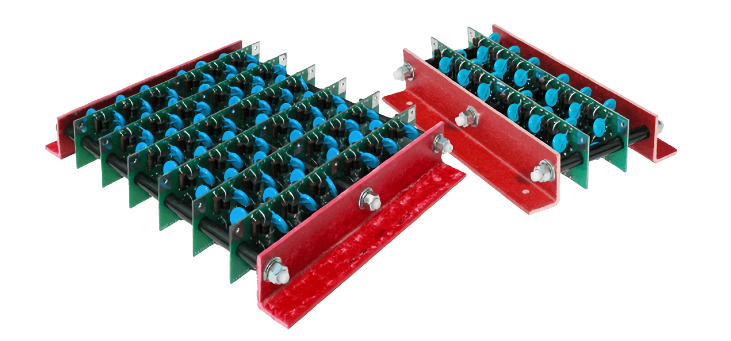

Full Wave Bridge Rectifiers
Advanced diffusion and manufacturing techniques allow us to produce a wide range of rectifier products. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Products
Data Sheets
Products
3PH Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Avg. Forward Current (A) | Forward Voltage Drop (V) | Reverse Current (µA) | Surge Current (A) |
| Single Phase | |||||
| 51012 | 12000 | 6 | 6 | 100 | 400 |
| 51014 | 24000 | 6 | 12 | 100 | 400 |
| Three Phase | |||||
| 51013 | 12000 | 9 | 6 | 100 | 400 |
| 51016 | 24000 | 9 | 9 | 100 | 400 |
51000 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Avg. Forward Current (A) | Forward Voltage Drop (V) | Reverse Current (µA) | Surge Current (A) |
| Single Phase | |||||
| 51012 | 12000 | 6 | 6 | 100 | 400 |
| 51014 | 24000 | 6 | 12 | 100 | 400 |
| Three Phase | |||||
| 51013 | 12000 | 9 | 6 | 100 | 400 |
| 51016 | 24000 | 9 | 9 | 100 | 400 |
52000 Series
| Part # | Repetitive Pk. Reverse Voltage (V) | Avg. Forward Current (A) | Forward Voltage Drop (V) | Reverse Current (µA) | Surge Current (A) |
| 52014 | 48000 | 4 | 9 | 100 | 400 |
| 52016 | 48000 | 6 | 9 | 100 | 400 |
