HH Series - High Voltage Ceramic Capacitors

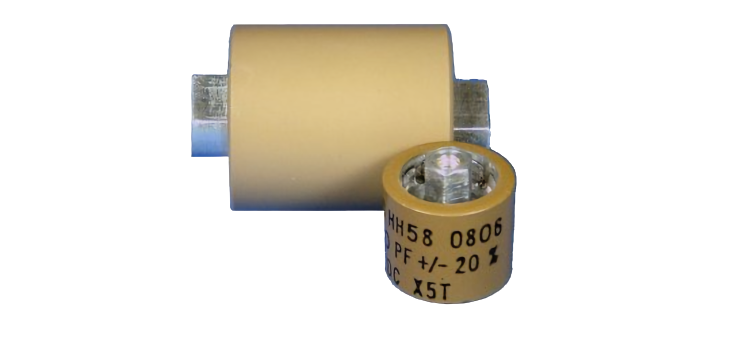

The HH57 series ceramic capacitors are compact high capacitance parts in a broadcast barrel package. Metric or English terminals are available

Features:

Compact High Capacitance Parts
7.5 and 15 kV_DC Power Ratings
Broadcast Barrel Package
Metric or English Terminals

Products

Data Sheets

Products

HH 57 Series


Part #	Capacitance	Material	Rated Voltage	Frequency H	I max (RMS)
HH57Y751KA	750 pF	X5T	15 kV	0.288 MHz	6.90 A
HH57Y102KA	1000 pF	X5T	15 kV	0.118 MHz	5.10 A
HH57Y122KA	1200 pF	X5T	15 kV	0.0985 MHz	5.10 A
HH57Y152KA	1500 pF	X5T	15 kV	0.0851 MHz	5.30 A
HH57 CUSTOM	750 – 1500 pF	N/A	7.5 – 15 kV	N/A	N/A

HH 58 Series


Part #	Capacitance	Material	Rated Voltage	Frequency H	I max (RMS)
HH58V501KA	500 pF	X5T	7.5 kV	12.7 MHz	4.90 A
HH58V701KA	700 pF	X5T	7.5 kV	9.85 MHz	5.10 A
HH58V901KA	900 pF	X5T	7.5 kV	8.27 MHz	5.30 A
HH58V102KA	1000 pF	X5V	7.5 kV	8.31 MHz	5.60 A
HH58V202KA	2000 pF	X5V	7.5 kV	5.26 MHz	6.30 A
HH58V252KA	2500 pF	X5U	7.5 kV	4.62 MHz	6.60 A
HH58 CUSTOM	500 – 2500 pF	N/A	N/A	N/A	N/A
