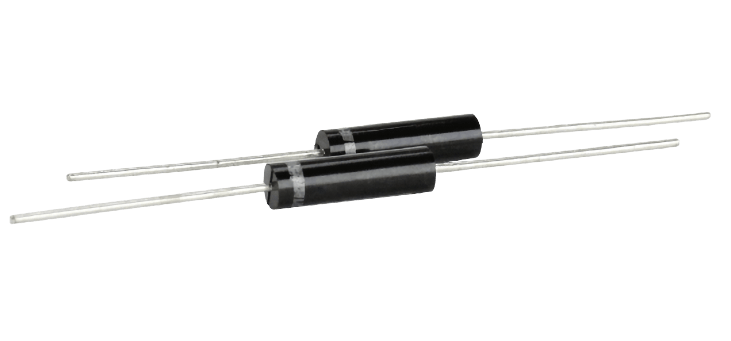

HV7 Series - High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- High voltage, fast recovery Diode
- Medium power handling capability
- RoHS compliant to Directive 2011/65/EC
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| HV37-08 | 8000 | 410 | 15 | 150 |  |
| HV37-08F | 8000 | 410 | 15 | 50 | |
| HV37-10 | 10000 | 365 | 15 | 150 | |
| HV37-10F | 10000 | 365 | 15 | 120 | |
| HV37-12 | 12000 | 340 | 15 | 150 | |
| HV37-12F | 12000 | 340 | 15 | 65 | |
| HV37-15 | 15000 | 300 | 15 | 150 | |
| HV37-15F | 15000 | 300 | 15 | 65 | |
| HV37-20 | 20000 | 220 | 15 | 150 | |
| HV37-20F | 20000 | 220 | 15 | 65 | |
| HV07-12B | 12000 | 500 | 30 | - | |
