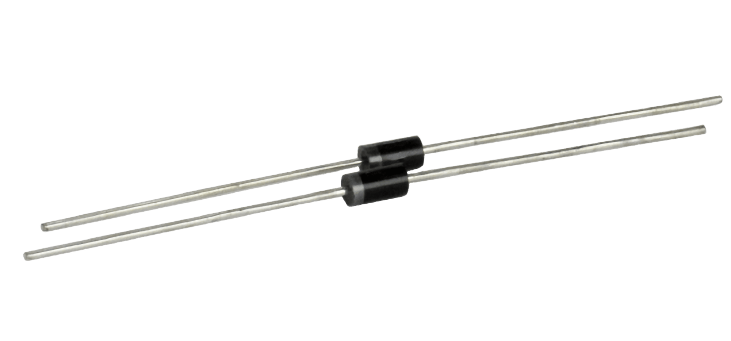

HVA Series - High Temperature, High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- High temperature operation to 175°C
- Avalanche Energy rated
- Molded plastic body, ANSI/UL94 V-0 rated material
- Glass passivated
- RoHS compliant to Directive 2011/65/EC
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Operating Temp (°C) | Datasheet |
| HVA3K | 3000 | 800 | 30 | -55 to 175 |  |
| HVA5K | 5000 | 500 | 30 | -55 to 175 | |
