Klystron Modulators

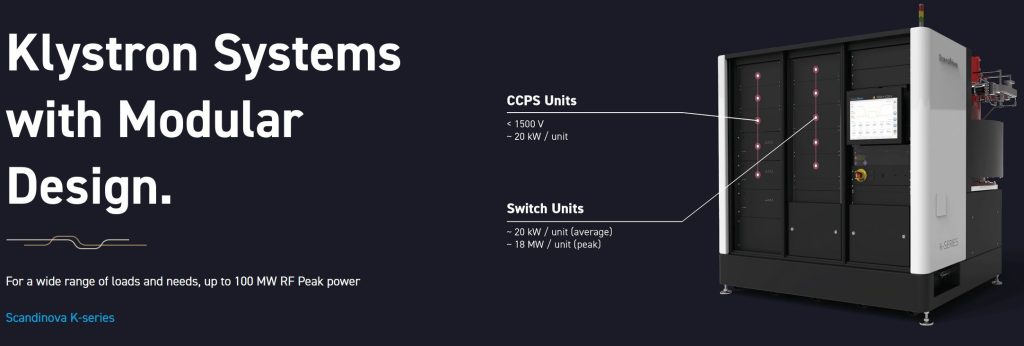

Several models also find use in radiotherapy and industrial applications. We offer everything from a pure high-voltage pulse modulator to a turn-key RF unit including klystron, control system and related components. Thanks to our modular design we can offer modulators that handle a wide range of loads all the way up to 100 MW RF peak power.
RF peak power: 0 – 13 MW
Pulse voltage: 40 – 130 kV
Pulse current: 30 – 100 A
Modulator peak: -
Modulator avg.: 30 kW
RF peak power: 3 – 10 MW
Pulse voltage: 115 – 190 kV
Pulse current: 90 – 140 A
Modulator peak: 26 MW
Modulator avg.: 30 kW
RF peak power: 7 - 35 MW
Pulse voltage: 160 – 290 kV
Pulse current: 120 – 280 A
Modulator peak: 80 MW
Modulator avg.: 55 kW
RF peak power: 20 – 50 MW
Pulse voltage: 250 – 360 kV
Pulse current: 200 – 350 A
Modulator peak: 115 MW
Modulator avg.: 80 kW
RF peak power: 30 – 60 MW
Pulse voltage: 280 – 450 kV
Pulse current: 230 – 450 A
Modulator peak: 160 MW
Modulator avg.: 125 kW
RF peak power: 50 – 100 MW
Pulse voltage: 320 – 500 kV
Pulse current: 300 – 525 A
Modulator peak: 220 MW
Modulator avg.: 160kW

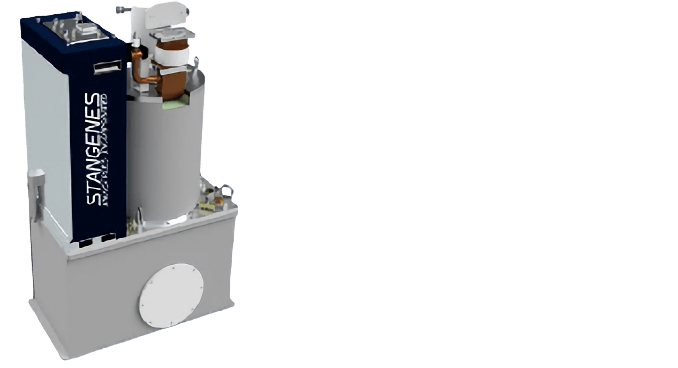

Valhala
