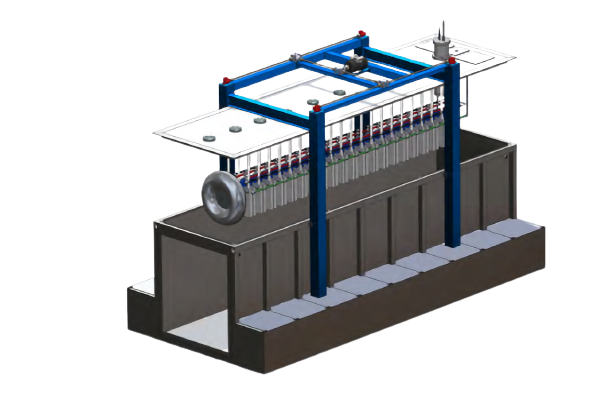

Marx Generators
Our range of Marx Generators features a variety of applications like flash X-ray, HPRF, and HPM, to test and evaluation (T&E), triggering, and material studies. Erected voltages up to several Megavolts (MV), with low source impedance, result in high system efficiency. Energy storage from millijoules (mJ) up to kilojoules (kJ) as well as ultrafast rise times as low as 200 picoseconds (ps) are a key feature of our generators.
Marx Generator Part Number Description
Marx Generators Product Catalog
MG12-1C-150NF:
• 12 stage system
• up to 600kV onto 200Ohms
• up to 2250J per pulse
• application: triggering, flashover studies
MG30-3C-100NF:
• up to 300kV
• 1.8kJ stored energy
• high energy density
• HPM / Pulse Charging
MG40-3C-2700PF:
• open circuit up to 1.6MV
• up to 10GW power
• flash X-ray
Models
| Model | Typical Application | Max. Open Circuit Voltage | Erected Capacitance | Rise Time | Pulse Width (FWHM) | Source Impedance | Energy per Pulse | Peak power | Max. Rep rate |
| MG17-1C-500PF | Direct RF | 510 kV | 29 pF | 0.2 ns | 8 ns | 160 Ω | 3.8 J | 400 MW | 20 Hz |
| MG17-1C-940PF | Direct RF | 510 kV | 55 pF | 0.3 ns | 13 ns | 125 Ω | 7.2 J | 520 MW | 20 Hz |
| MG10-1C-2700PF | Triggering | 300 kV | 270 pF | 5 ns | 35 ns | 40 Ω | 12.2 J | 560 MW | 20 Hz |
| MG15-3C-940PF | RF, Triggering | 600 kV | 188 pF | 3 ns | 25 ns | 50 Ω | 33.8 J | 1.8 GW | 100 Hz |
| MG16-3C-2700PF | Pulse charging | 600 kV | 540 pF | 15 ns | 50 ns | 23 Ω | 97.2 J | 4 GW | 100 Hz |
| MG40-3C-2700PF | Flash X-ray | 1600 kV | 200 pF | 20 ns | 50 ns | 70 Ω | 259.2 J | 9 GW | 20 Hz |
| MG20-22C-2000PF | HPM, Pulse charging | 800 kV | 2.2 nF | 20 ns | 80 ns | 18 Ω | 704 J | 9 GW | 20 Hz |
| MG20-1C-100NF | HPM, Pulse charging | 400 kV | 5 nF | 20 ns | 200 ns | 23 Ω | 400 J | 1.7 GW | 20 Hz |
| MG30-3C-100NF | HPM, Pulse charging | 600 kV | 10 nF | 90 ns | 400 ns | 33 Ω | 1800 J | 2.7 GW | 20 Hz |
| MG30-1C-100NF | HPM, Pulse charging | 600 kV | 3.3 nF | 25 ns | 150 ns | 40 Ω | 600 J | 2.2 GW | 20 Hz |
| MG83-1C-150NF | HPM, Pulse charging | 4150 kV | 1.8 nF | 180 ns | 270 ns | 70 Ω | 15000 J | 61.5 GW | 0.2 Hz |
| MG10-1C-150NF | MIL STD Testing | 300 kV | 15 nF | 15 ns | 525 ns | 60 Ω | 675 J | 1.5 GW | 0.2 Hz |
