MG10-1C-150NF
PART NUMBER: MG10-1C-150NF
The MG10-1C-150NF is a robust Marx Generator developed for breakdown and flashover studies using a MIL-STD-188-125 E1 waveform when an internal 60 Ohm resistor is used. An internal peaking circuit allows the generator to meet the <20 ns rise-time requirement of the MIL-STD. Because of its rise-time, pulse-width, and relatively low impedance, the generator was identified as a potential source for HPM loads.
Characteristics:
- Maximum open circuit voltage: 350 kV
- Voltage into 60 Ohms: 350 kV
- Maximum peak voltage into matched load: 175 kV
- Maximum repetition rate: 10 Hz
- Energy per pulse: 920 J
- Internal peaking circuit
- Pulse rise-time: <20 ns
- Pulse-width (FWHM): ~500 ns
- Optional internal 60 Ohm load
Waveforms
Components
Requirements
Parameters
Technical Drawing
Waveforms
Components
The following items are included with the MG10-1C-150NF:
- Marx Generator
- High-voltage cable with quick connect
- High-voltage power supply cable with quick connect
- High-voltage trigger cable with quick connect
Requirements
The following items are required for proper implementation of the MG10-1C-150NF:
- High voltage, capacitor charging power supply
- High voltage trigger unit
- Pressurized breathable dry air source
Parameters
| Parameter | Description | Value | Unit |
| N | Number of Marx Generator stages | 10 | – |
| Epulse | Maximum Marx energy per pulse | 920 | J |
| Pmax | Peak power into 60 Ohms | 2 | GW |
| Vch | Marx maximum charge voltage | 35 | kV |
| VE | Peak Erected voltage | 350 | kV |
| Cstage | Capacitance per Marx stage | 150 | nF |
| CE | Erected capacitance | 15 | pF |
| Le | Series Inductance | 1.6 | nH |
| Zm | Marx Impedance | 10 | Ohm |
| L | Marx Generator Length | 42 | In. |
| W | Marx Generator Width | 15 | In. |
| h | Marx Generator Height | 30 | In. |

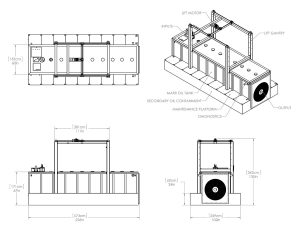

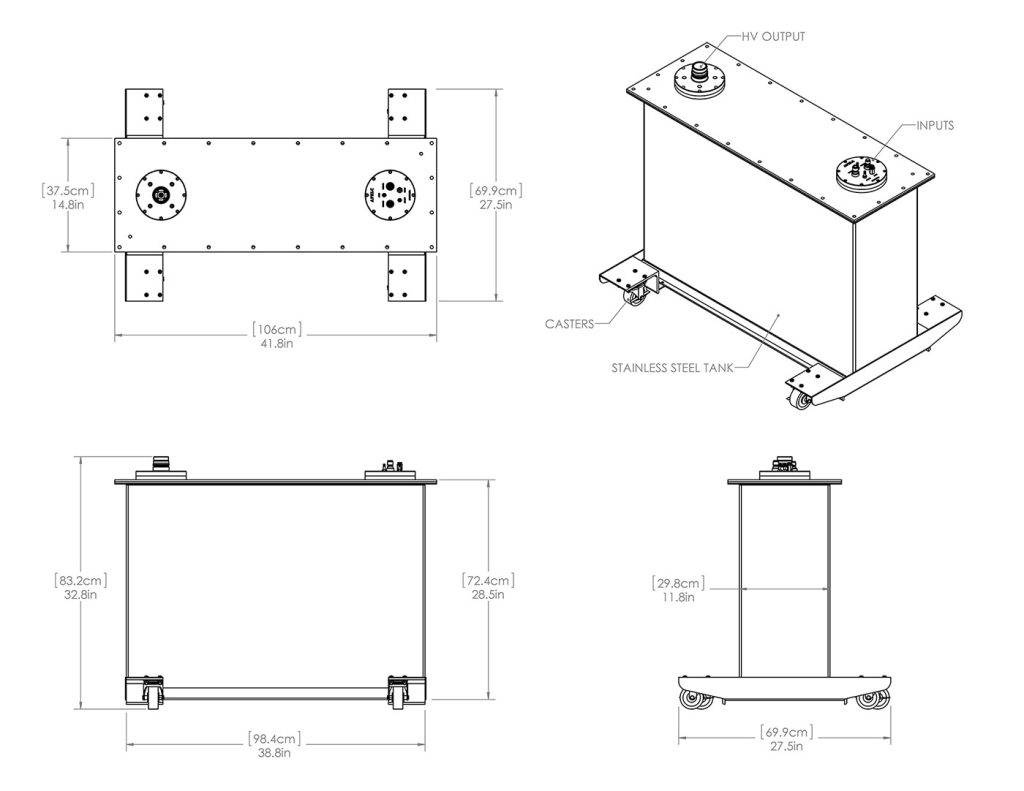

Technical Drawing
