MG16-3C-2700PF
PART NUMBER: MG16-3C-2700PF
The MG16-3C-27000 Marx Generator is specifically developed for high-powered RF applications. Delivering nearly 4.5 GW of peak power into a matched resistive load, it is capable of operating with a burst-mode repetition rate of 100 Hz and delivering an average power of 10 kJ/s.
With a rise-time of less than 20 ns, and significant erected energy, this generator is well-suited for driving the type of pulse conditioning circuits typically used for producing high-powered RF.
Characteristics:
- Maximum open-circuit voltage: 640 kV
- Maximum peak voltage into matched load: 320 kV
- Maximum repetition rate: 100 Hz
- Peak power (matched load): 4.45 GW
- Energy per pulse: 100 J
- Pulse rise-time: ~15 ns
Waveforms
Components
Requirements
Parameters
Technical Drawing

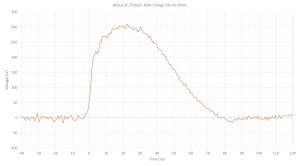

Waveforms
Components
The following items are included with this Marx generator:
- Marx Generator
- High-voltage cable with quick connect
- High-voltage power supply cable with quick connect
- High-voltage trigger cable with quick connect
- Two additional stages
Requirements
The following item is required for proper implementation of this Marx Generator:
- High-voltage capacitor charging power supply
- High-voltage trigger unit
- Pressurized breathable dry air source
Parameters
| Parameter | Description | Value | Unit |
| N | Number of Marx Generator stages | 16 | – |
| Epulse | Maximum Marx energy per pulse | 100 | J |
| Pmax | Peak power to a matched load | 4.45 | GW |
| Vch | Marx maximum charge voltage | 40 | kV |
| VE | Peak Erected voltage | 640 | kV |
| Cstage | Capacitance per Marx stage | 8,100 | pF |
| CE | Erected capacitance | 506 | pF |
| Le | Series Inductance | 300 | nH |
| Zm | Marx Impedance | 23 | Ohm |
| L | Marx Generator Length | 42 | In. |
| D | Marx Generator Diameter | 8 | In. |
| PRFmax | Maximum Burst-Mode PRF | 100 | Hz |

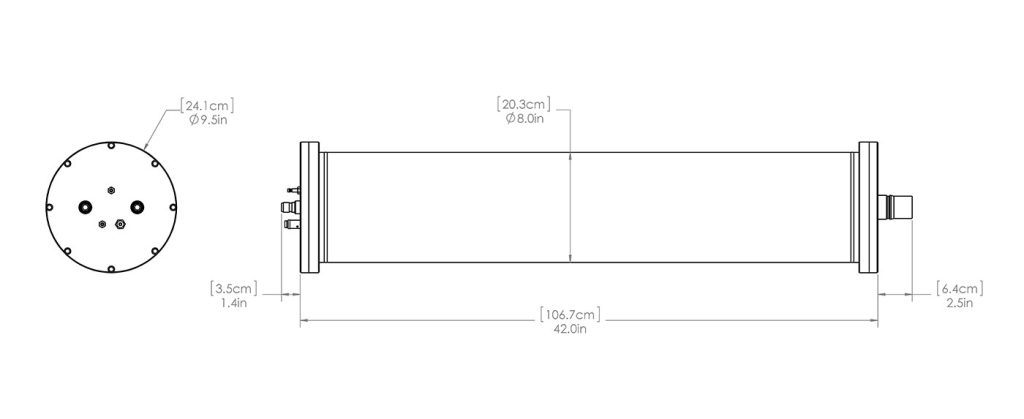

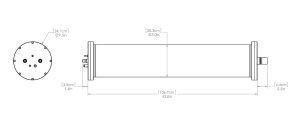

Technical Drawing
