MG30-1C-100NF
PART NUMBER: MG30-1C-100NF

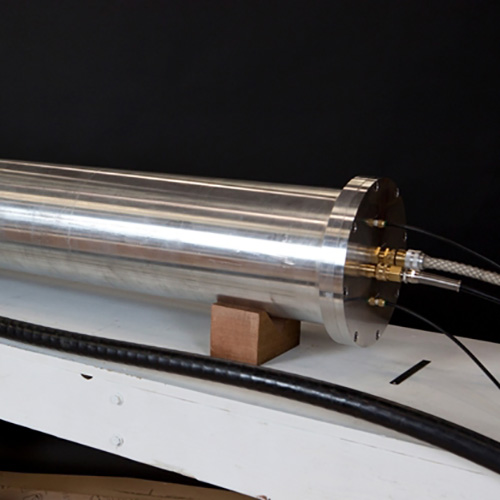

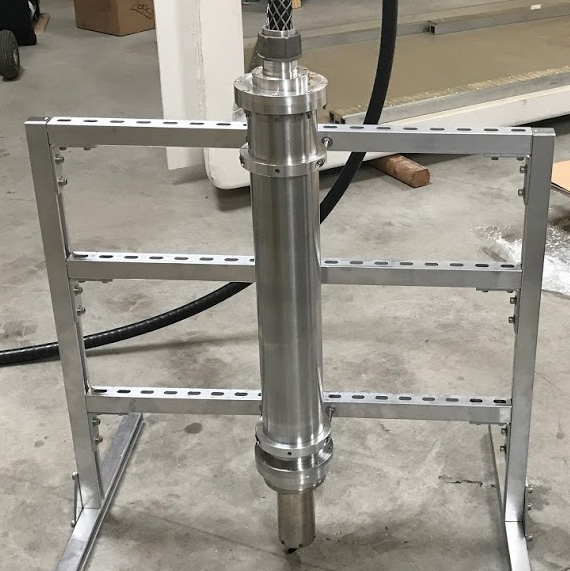

The MG30-1C-100NF coaxial Marx Generator is a 30-stage generator with 100 nF of capacitance per stage. Its applications include material breakdown studies and high-power microwaves (HPM).
The maximum charge voltage is 20 kV per stage, which corresponds to a matched-impedance load voltage of 300 kV onto 45 Ohms.
Characteristics:
- Erected voltage: 600 kV
- Voltage onto matched load: 300 kV
- Energy per pulse: 600 J
- Source impedance: 45 Ω
- Maximum repetition rate: 7 Hz (using a Lambda 802L)
Waveforms
Components
Requirements
Parameters
Technical Drawing

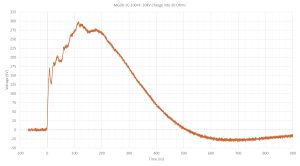

Waveforms
Components

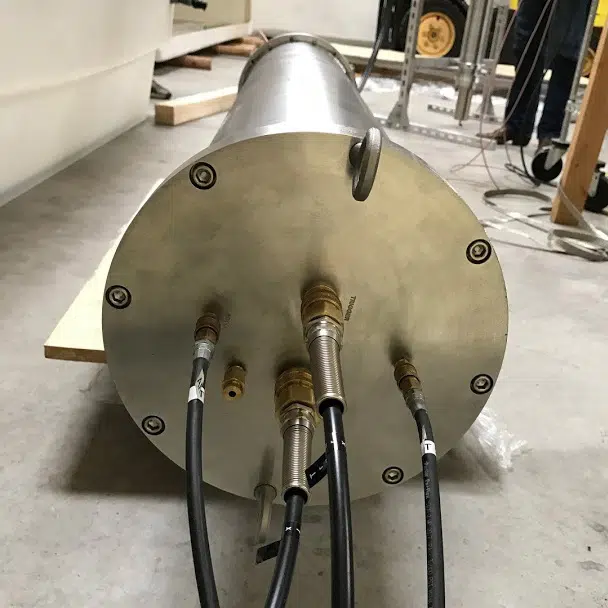

The following items are included with this Marx Generator:
- Marx Generator
- Vacuum flange or cable interface
- High-voltage power supply cable with quick connect
- High-voltage trigger cable with quick connect
- Two additional stages
Requirements

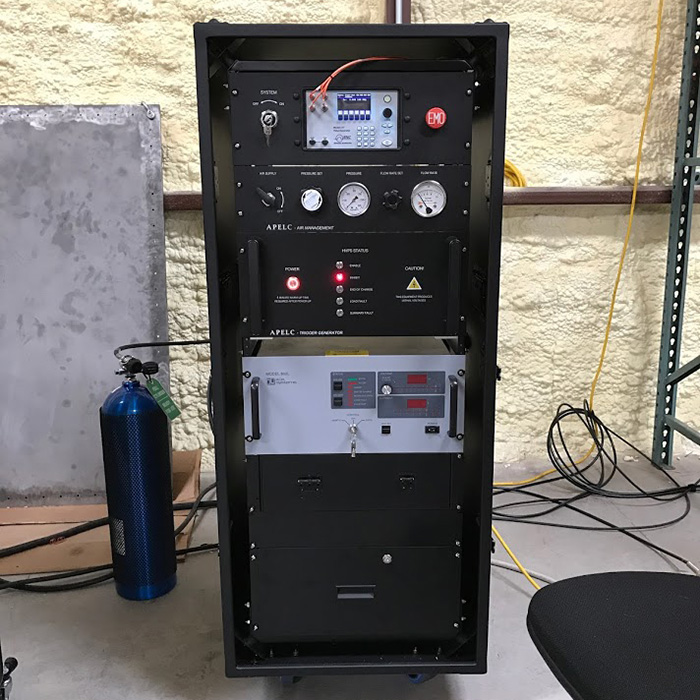

The following item is required for proper implementation of this Marx Generator:
- High-voltage, constant voltage power supply
- High-voltage trigger unit
- Pressurized breathable dry air source
Parameters
| Parameter | Description | Value | Unit |
| N | Number of Marx Generator stages | 30 | – |
| Epulse | Maximum Marx energy per pulse | 600 | J |
| Pmax | Peak power to a matched load | GW | |
| Vch | Marx maximum charge voltage | 20 | kV |
| VE | Peak Erected voltage | 600 | kV |
| Cstage | Capacitance per Marx stage | 100 | nF |
| CE | Erected capacitance | 3.33 | nF |
| Le | Series Inductance | 6.86 | mH |
| Zm | Marx Impedance | 45 | Ohm |
| L | Marx Generator Length | 58 | In. |
| D | Marx Generator Diameter | 11.5 | In. |
| PRFmax | Maximum Burst-Mode PRF | 7 | Hz |

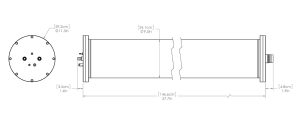

Technical Drawing
