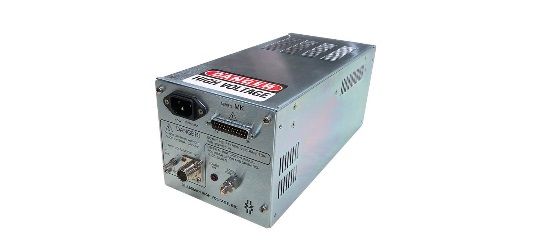

MK Series - High Voltage Power Supply
The MK Series of 75 watt high voltage supplies areair insulated, fast response units, with tight regulation and low arc discharge currents.
Typical Applications
- Semiconductor
- Vacuum/Plasma
- Ion Beam Deposition
| Series | Max. Output Voltage | Max. Output Current | Max. Output Power | Input Voltage | Ripple better than |
| MK1X75L | 0 – 1 kV | 75 mA | 75 W | Single Phase | 0.03% |
| MK1P75L | 0 – 1 kV | 75 mA | 75 W | Single Phase | 0.03% |
| MK1N75L | 0 – 1 kV | 75 mA | 75 W | Single Phase | 0.03% |
| MK1.5X50L | 0 – 1.5 kV | 50 mA | 75 W | Single Phase | 0.03% |
| MK1.5P50L | 0 – 1.5 kV | 50 mA | 75 W | Single Phase | 0.03% |
| MK1.5N50L | 0 – 1.5 kV | 50 mA | 75 W | Single Phase | 0.03% |
| MK2X37.5L | 0 – 2 kV | 37.5 mA | 75 W | Single Phase | 0.03% |
| MK2P37.5L | 0 – 2 kV | 37.5 mA | 75 W | Single Phase | 0.03% |
| MK2N37.5L | 0 – 2 kV | 37.5 mA | 75 W | Single Phase | 0.03% |
| MK3X25L | 0 – 3 kV | 25 mA | 75 W | Single Phase | 0.03% |
| MK3P25L | 0 – 3 kV | 25 mA | 75 W | Single Phase | 0.03% |
| MK3N25L | 0 – 3 kV | 25 mA | 75 W | Single Phase | 0.03% |
| MK5X15L | 0 – 5 kV | 15 mA | 75 W | Single Phase | 0.03% |
| MK5P15L | 0 – 5 kV | 15 mA | 75 W | Single Phase | 0.03% |
| MK5N15L | 0 – 5 kV | 15 mA | 75 W | Single Phase | 0.03% |
| MK10X7.5 | 0 – 10 kV | 7.5 mA | 75 W | Single Phase | 0.03% |
| MK10P7.5 | 0 – 10 kV | 7.5 mA | 75 W | Single Phase | 0.03% |
| MK10N7.5 | 0 – 10 kV | 7.5 mA | 75 W | Single Phase | 0.03% |
| MK15X5 | 0 – 15 kV | 5 mA | 75 W | Single Phase | 0.03% |
| MK15P5 | 0 – 15 kV | 5 mA | 75 W | Single Phase | 0.03% |
| MK15N5 | 0 – 15 kV | 5 mA | 75 W | Single Phase | 0.03% |
| MK20X3.7 | 0 – 20 kV | 3.7 mA | 75 W | Single Phase | 0.03% |
| MK20P3.7 | 0 – 20 kV | 3.7 mA | 75 W | Single Phase | 0.03% |
| MK20N3.7 | 0 – 20 kV | 3.7 mA | 75 W | Single Phase | 0.03% |
| MK25X3 | 0 – 25 kV | 3 mA | 75 W | Single Phase | 0.03% |
| MK25P3 | 0 – 25 kV | 3 mA | 75 W | Single Phase | 0.03% |
| MK25N3 | 0 – 25 kV | 3 mA | 75 W | Single Phase | 0.03% |
| MK30X2.5 | 0 – 30 kV | 2.5 mA | 75 W | Single Phase | 0.03% |
| MK30P2.5 | 0 – 30 kV | 2.5 mA | 75 W | Single Phase | 0.03% |
| MK30N2.5 | 0 – 30 kV | 2.5 mA | 75 W | Single Phase | 0.03% |
| MK35X2 | 0 – 35 kV | 2 mA | 75 W | Single Phase | 0.03% |
| MK35P2 | 0 – 35 kV | 2 mA | 75 W | Single Phase | 0.03% |
| MK35N2 | 0 – 35 kV | 2 mA | 75 W | Single Phase | 0.03% |
| MK40X1.8 | 0 – 40 kV | 1.8 mA | 75 W | Single Phase | 0.03% |
| MK40P1.8 | 0 – 40 kV | 1.8 mA | 75 W | Single Phase | 0.03% |
| MK40N1.8 | 0 – 40 kV | 1.8 mA | 75 W | Single Phase | 0.03% |
| MK50X1.5 | 0 – 50 kV | 1.5 mA | 75 W | Single Phase | 0.03% |
| MK50P1.5 | 0 – 50 kV | 1.5 mA | 75 W | Single Phase | 0.03% |
| MK50N1.5 | 0 – 50 kV | 1.5 mA | 75 W | Single Phase | 0.03% |
| MK60X1.2 | 0 – 60 kV | 1.2 mA | 75 W | Single Phase | 0.03% |
| MK60P1.2 | 0 – 60 kV | 1.2 mA | 75 W | Single Phase | 0.03% |
| MK60N1.2 | 0 – 60 kV | 1.2 mA | 75 W | Single Phase | 0.03% |
MK Series Input Voltage Output Voltage Output Power | Polarity Operating Ambient Temperature Ripple | Programming Standards |
