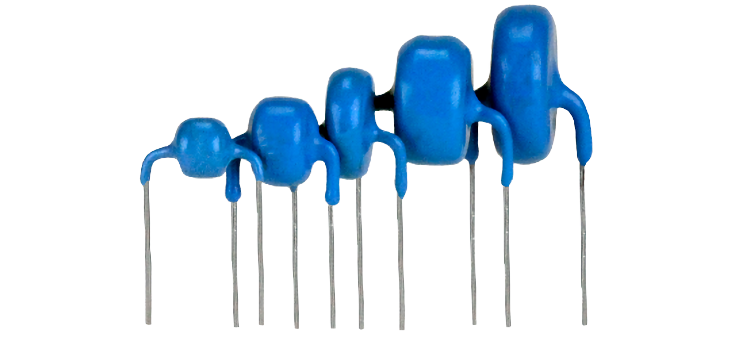

NY3 Series - High Voltage Ceramic Axial Lead Capacitors
Our high voltage ceramic capacitors are epoxy encapsulated and designed to meet the demanding requirements of high voltage applications. They are appropriate for applications requiring a low dissipation factor, small voltage coefficient and good temperature stability.
Features:
- Compact design with low dissipation factor
- Low voltage coefficient
- Epoxy encapsulated, axial egress lead design for long creepage distances
Products
Data Sheets
Products
| Part # | Capacitance (pF) | Tolerance (%) | Material | Rated Voltage (V) | Dielectric Withstand (V) |
| Y5P Dielectric | |||||
| NY3Y5P221M10KV | 220 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P471M10KV | 470 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P561M10KV | 560 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P681M10KV | 680 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P102M10KV | 1000 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P152M10KV | 1500 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P252M10KV | 2500 | 20 | Y5P | 10000 | 15000 |
| NY3Y5P221M12KV | 220 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P471M12KV | 470 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P561M12KV | 560 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P681M12KV | 680 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P102M12KV | 1000 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P152M12KV | 1500 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P252M12KV | 2500 | 20 | Y5P | 12000 | 18000 |
| NY3Y5P221M15KV | 220 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P471M15KV | 470 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P561M15KV | 560 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P681M15KV | 680 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P102M15KV | 1000 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P152M15KV | 1500 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P252M15KV | 2500 | 20 | Y5P | 15000 | 22500 |
| NY3Y5P221M18KV | 220 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P471M18KV | 470 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P561M18KV | 560 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P681M18KV | 680 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P102M18KV | 1000 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P152M18KV | 1500 | 20 | Y5P | 18000 | 27000 |
| NY3Y5P221M20KV | 220 | 20 | Y5P | 20000 | 30000 |
| NY3Y5P471M20KV | 470 | 20 | Y5P | 20000 | 30000 |
| NY3Y5P561M20KV | 560 | 20 | Y5P | 20000 | 30000 |
| NY3Y5P681M20KV | 680 | 20 | Y5P | 20000 | 30000 |
| NY3Y5P102M20KV | 1000 | 20 | Y5P | 20000 | 30000 |
| NY3Y5P152M20KV | 1500 | 20 | Y5P | 20000 | 30000 |
| Y5U Dielectric | |||||
| NY3Y5U561M10KV | 560 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U681M10KV | 680 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U102M10KV | 1000 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U122M10KV | 1200 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U182M10KV | 1800 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U222M10KV | 2200 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U332M10KV | 3300 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U472M10KV | 4700 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U562M10KV | 5600 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U682M10KV | 6800 | 20 | Y5U | 10000 | 15000 |
| NY3Y5U561M12KV | 560 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U681M12KV | 680 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U102M12KV | 1000 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U122M12KV | 1200 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U182M12KV | 1800 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U222M12KV | 2200 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U332M12KV | 3300 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U472M12KV | 4700 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U562M12KV | 5600 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U682M12KV | 6800 | 20 | Y5U | 12000 | 18000 |
| NY3Y5U561M15KV | 560 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U681M15KV | 680 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U102M15KV | 1000 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U122M15KV | 1200 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U182M15KV | 1800 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U222M15KV | 2200 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U332M15KV | 3300 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U472M15KV | 4700 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U562M15KV | 5600 | 20 | Y5U | 15000 | 22500 |
| NY3Y5U561M18KV | 560 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U681M18KV | 680 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U102M18KV | 1000 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U122M18KV | 1200 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U182M18KV | 1800 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U222M18KV | 2200 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U332M18KV | 3300 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U472M18KV | 4700 | 20 | Y5U | 18000 | 27000 |
| NY3Y5U561M20KV | 560 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U681M20KV | 680 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U102M20KV | 1000 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U122M20KV | 1200 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U182M20KV | 1800 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U222M20KV | 2200 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U332M20KV | 3300 | 20 | Y5U | 20000 | 30000 |
| NY3Y5U472M20KV | 4700 | 20 | Y5U | 20000 | 30000 |
