Open Frame, Low Power AC/DC Power Supplies
HVP’s selection of open frame power supplies ranges from output powers between 25W to 400W in free air. Higher ratings can be achieved with forced air cooling. A wide range of standard output voltages (5-54V) is available as well as several different industrial footprints of the devices. Many more models are available upon request.
Features
• medically approved AC-DC power supplies
• CF Rated Leakage Current <10μA
• 5 kV Defibrillator Withstand
• Up to 660 W with Air Flow, 440 W Convection
• Meets Class B Emissions Levels
• 4”W x 7”L x 1.6”H Size
• Universal Input 85 to 264 VAC, Class I
Features
• Single, triple and quad output voltages
• Fan options on some models
• Industry standard footprints
• Medical safety approvals
Features
• Single, triple and quad output voltages
• Fan options on some models
• Industry standard footprints
• Medical safety approvals
| Series | Output Voltages (V) | Max. Load Current (A) | Max. Output Power (W) | Input Voltage (VAC) | Footprint (in.) | Datasheet |
| NCF660 | 12 /15 /24 / 48 | - | 660 | 85 – 264 | 4 x 7 x 1.6 |  |
| NPS20-M | 5 / 12 / 15 / 24 / 48 | 8 | 40 | 90-264 | 2 x 4 | |
| NPS60-M | 5 / 12 / 15 / 24 | 11 | 60 | 90-264 | 2 x 4 | |
| LPS100-M | 5 / 12 / 15 / 24 / 48 / 54 | 30 | 150 | 90-264 | 2 x 4 | |
| LPQ200-M | 3.3 / 5 / 12 | 13 | 200 | 90-264 | 3 x 5 | |
| CPS250-M | 12 / 24 / 48 | 20.83 | 250 | 90-264 | 2 x 4 | |
| LPS360-M | 12 / 15 / 24 / 36 / 48 | 30 | 360 | 90-264 | 3 x 5 | |

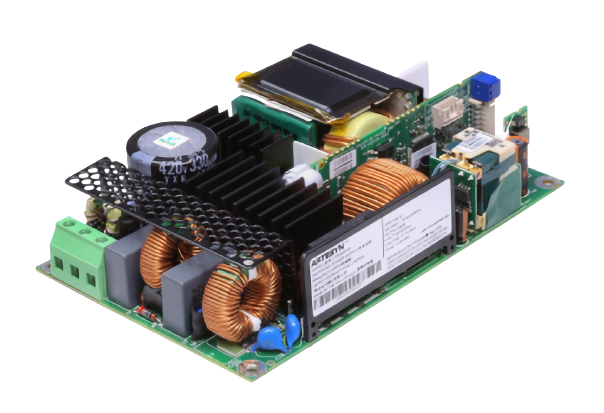

| CNS650-MU | 12 / 24 / 48 | 54.2 | 650 | 90-264 | 4 x 6 | |
