Quick Connectors

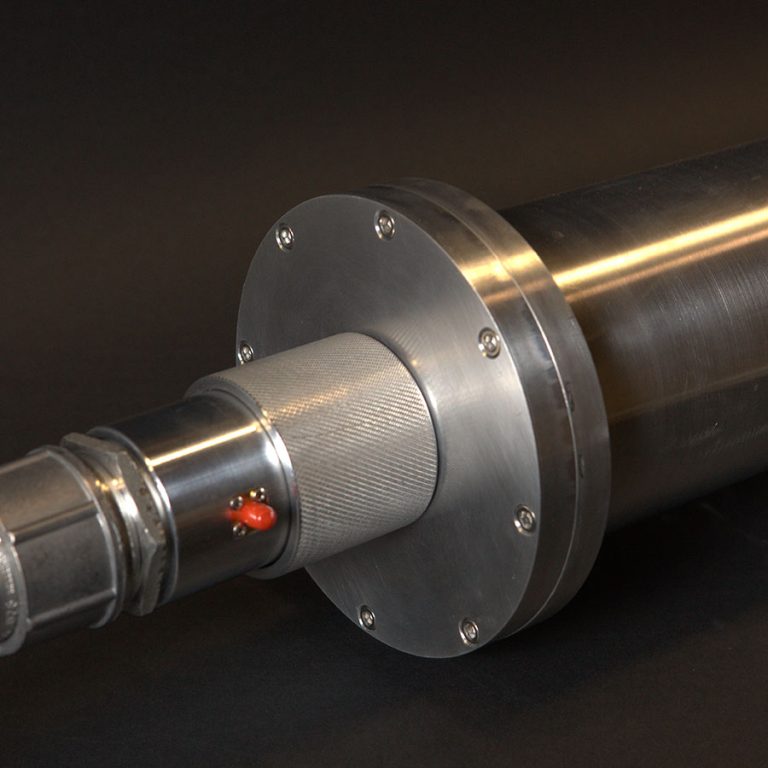

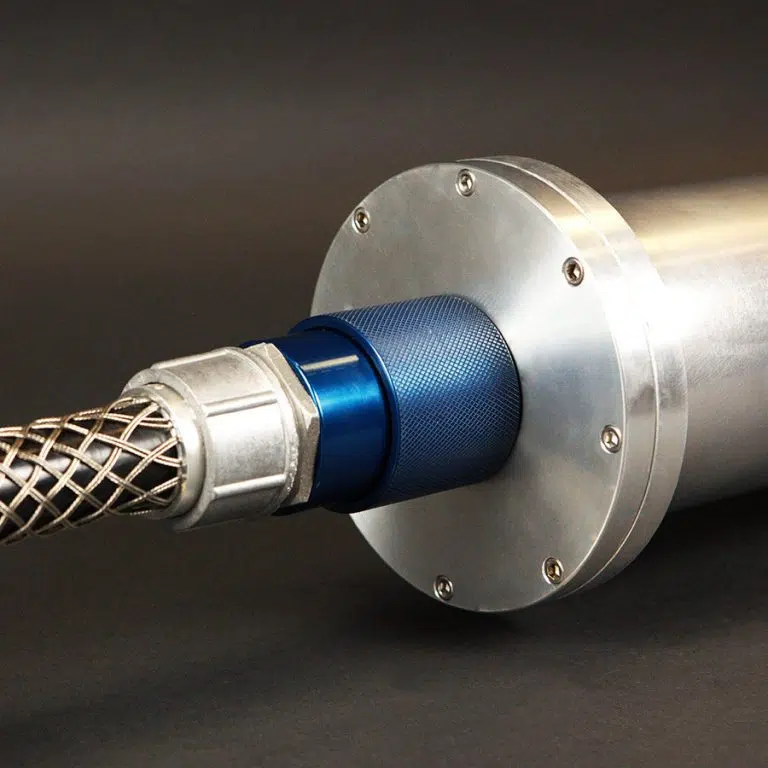

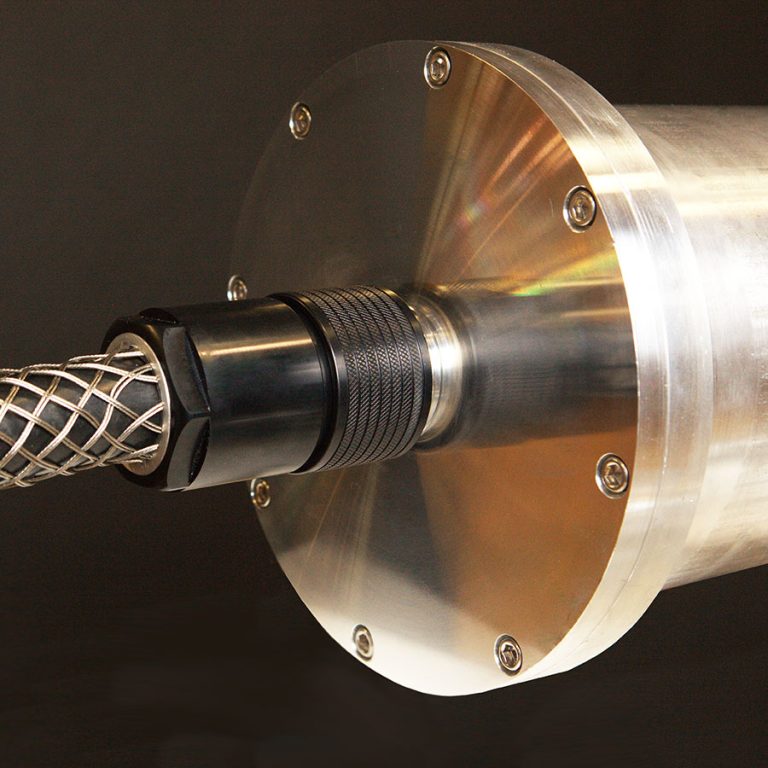

We offer multiple sizes and styles of coaxial high-voltage quick disconnect cable connectors for voltages up to 700 kV. Exceptionally rugged and precision machined, the high-voltage quick disconnects are designed to ease management of bulky, heavy duty, high-voltage cables. High-voltage quick disconnects are a standard with out Marx Generators and other high-voltage equipment.
Quick Connectors Product Catalog
Features:
- Nickel plated brass or aluminum construction
- Quick disconnect/connect with independent electrical and mechanical connections
- Integrated strain relief
- High conductivity canted spring contacts for ground and center conductor
- Safety options
- High visibility connection indication ring
- Integrated locking set screw
| Cable type | DC rating | Impedance | Cable OD | Application |
| RG-213/214 | 40 KV | 50 OHMS | .405 Inch | Charge and Trigger |
| DS 2214 | 75 KV | 46 OHMS | .650 Inch | Charge and pulse output |
| DS 2042 | 230 KV | 46 OHMS | 1.225 Inch | Pulse output |
| DS 2134 | 200 KV | 68 OHMS | .850 Inch | Pulse output |
| DS 2158* | 250 KV | 41 OHMS | 1.52 Inch | Pulse output |
| DS 2245 | 25 KV | 12.5 OHMS | .620 Inch | Trigger and pulse output |
| DS 2077** | 300 KV | 70 OHMS | 1.5 Inch | Pulse output |
| RG 220 | 100 KV | 50 OHMS | 1.120 Inch | Charge and pulse output |
| RG 217 | 50 KV | 50 OHMS | 0.545 Inch | Pulse delivery and high voltage charging |
| DS 2121 | 150 KV | 50 OHMS | 0.625 Inch | Pulse delivery and high voltage charging |
*DS 2158 cable discontinued from manufacturer. **DS 2077-1 option available
