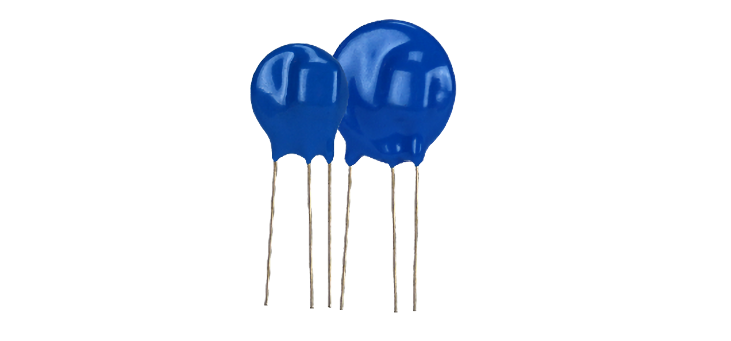

Radial Lead MOVs
Our surge suppressor with thermal protection designed to open in the event of overheating due to abnormal over-voltage, limited current conditions.
Features:
- Quick thermal response and perfect circuit cut-off
- High surge current capability
- UL 1443 approved
| Part # | Max Continious Oprtating Voltage (Vac) | Max Continious Oprtating Voltage (Vdc) | Peak Surge Current for 1 Pulse (A) | Response Time (nS) |
| TP2-10-820 | 50 | 65 | 10000 | 25 |
| TP2-10-101 | 60 | 81 | 10000 | 25 |
| TP2-10-121 | 75 | 100 | 10000 | 25 |
| TP2-10-151 | 95 | 125 | 10000 | 25 |
| TP2-10-181 | 115 | 150 | 10000 | 25 |
| TP2-10-201 | 130 | 170 | 10000 | 25 |
| TP2-10-221 | 140 | 180 | 10000 | 25 |
| TP2-10-241 | 150 | 200 | 10000 | 25 |
| TP2-10-271 | 175 | 225 | 10000 | 25 |
| TP2-10-331 | 210 | 275 | 10000 | 25 |
| TP2-10-361 | 230 | 300 | 10000 | 25 |
| TP2-10-391 | 250 | 320 | 10000 | 25 |
| TP2-10-431 | 275 | 350 | 10000 | 25 |
| TP2-10-471 | 300 | 385 | 10000 | 25 |
| TP2-10-511 | 320 | 410 | 10000 | 25 |
| TP2-10-561 | 350 | 460 | 10000 | 25 |
| TP2-10-621 | 385 | 505 | 10000 | 25 |
| TP2-10-681 | 420 | 560 | 10000 | 25 |
| TP2-10-751 | 460 | 615 | 10000 | 25 |
| TP2-10-781 | 485 | 640 | 10000 | 25 |
| TP2-10-821 | 510 | 670 | 10000 | 25 |
| TP2-10-911 | 550 | 745 | 10000 | 25 |
| TP2-10-820B | 50 | 65 | 10000 | 25 |
| TP2-10-101B | 60 | 81 | 10000 | 25 |
| TP2-10-121B | 75 | 100 | 10000 | 25 |
| TP2-10-151B | 95 | 125 | 10000 | 25 |
| TP2-10-181B | 115 | 150 | 10000 | 25 |
| TP2-10-201B | 130 | 170 | 10000 | 25 |
| TP2-10-221B | 140 | 180 | 10000 | 25 |
| TP2-10-241B | 150 | 200 | 10000 | 25 |
| TP2-10-271B | 175 | 225 | 10000 | 25 |
| TP2-10-331B | 210 | 275 | 10000 | 25 |
| TP2-10-361B | 230 | 300 | 10000 | 25 |
| TP2-10-391B | 250 | 320 | 10000 | 25 |
| TP2-10-431B | 275 | 350 | 10000 | 25 |
| TP2-10-471B | 300 | 385 | 10000 | 25 |
| TP2-10-511B | 320 | 410 | 10000 | 25 |
| TP2-10-561B | 350 | 460 | 10000 | 25 |
| TP2-10-621B | 385 | 505 | 10000 | 25 |
| TP2-10-681B | 420 | 560 | 10000 | 25 |
| TP2-10-751B | 460 | 615 | 10000 | 25 |
| TP2-10-781B | 485 | 640 | 10000 | 25 |
| TP2-10-821B | 510 | 670 | 10000 | 25 |
| TP2-10-911B | 550 | 745 | 10000 | 25 |
| TP2-15-201 | 130 | 170 | 15000 | 29 |
| TP2-15-221 | 140 | 180 | 15000 | 29 |
| TP2-15-241 | 150 | 200 | 15000 | 29 |
| TP2-15-271 | 175 | 225 | 15000 | 29 |
| TP2-15-331 | 210 | 275 | 15000 | 29 |
| TP2-15-361 | 230 | 300 | 15000 | 29 |
| TP2-15-391 | 250 | 320 | 15000 | 29 |
| TP2-15-431 | 275 | 350 | 15000 | 29 |
| TP2-15-471 | 300 | 385 | 15000 | 29 |
| TP2-15-511 | 320 | 410 | 15000 | 29 |
| TP2-15-561 | 350 | 460 | 15000 | 29 |
| TP2-15-621 | 385 | 505 | 15000 | 29 |
| TP2-15-681 | 420 | 560 | 15000 | 29 |
| TP2-15-751 | 460 | 615 | 15000 | 29 |
| TP2-15-781 | 485 | 640 | 15000 | 29 |
| TP2-15-821 | 510 | 670 | 15000 | 29 |
| TP2-15-911 | 550 | 745 | 15000 | 29 |
| TP2-15-102 | 625 | 825 | 15000 | 29 |
| TP2-15-112 | 680 | 895 | 15000 | 29 |
| TP2-15-201B | 130 | 170 | 15000 | 29 |
| TP2-15-221B | 140 | 180 | 15000 | 29 |
| TP2-15-241B | 150 | 200 | 15000 | 29 |
| TP2-15-271B | 175 | 225 | 15000 | 29 |
| TP2-15-331B | 210 | 275 | 15000 | 29 |
| TP2-15-361B | 230 | 300 | 15000 | 29 |
| TP2-15-391B | 250 | 320 | 15000 | 29 |
| TP2-15-431B | 275 | 350 | 15000 | 29 |
| TP2-15-471B | 300 | 385 | 15000 | 29 |
| TP2-15-511B | 320 | 410 | 15000 | 29 |
| TP2-15-561B | 350 | 460 | 15000 | 29 |
| TP2-15-621B | 385 | 505 | 15000 | 29 |
| TP2-15-681B | 420 | 560 | 15000 | 29 |
| TP2-15-751B | 460 | 615 | 15000 | 29 |
| TP2-15-781B | 485 | 640 | 15000 | 29 |
| TP2-15-821B | 510 | 670 | 15000 | 29 |
| TP2-15-911B | 550 | 745 | 15000 | 29 |
| TP2-15-102B | 625 | 825 | 15000 | 29 |
| TP2-15-112B | 680 | 895 | 15000 | 29 |
