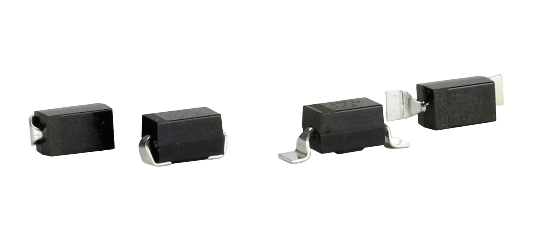

SM Series - Surface Mount High Voltage Diodes
Advanced diffusion and manufacturing techniques allow us to produce a wide range of Power Diodes. Tight control of these designs and processes allow for custom versions of any product within this line, and delivery on short lead times.
Features:
- Fast reverse recovery time for high efficiency
- Molded plastic body, ANSI/UL94 V-0 rated material
- RoHS compliant to Directive 2011/65/EC
with J-Lead
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| SM3F | 3000 | 900 | 10 | 65 |  |
| SM5F | 5000 | 270 | 10 | 65 | |
with Gull Wings
| Part # | Repetitive Peak Reverse Voltage (V) | Average Forward Current (mA) | Surge Current (A) | Reverse Recovery Time (nS) | Datasheet |
| SM3FG | 3000 | 900 | 10 | 65 | |
| SM5FG | 5000 | 270 | 10 | 65 | |
