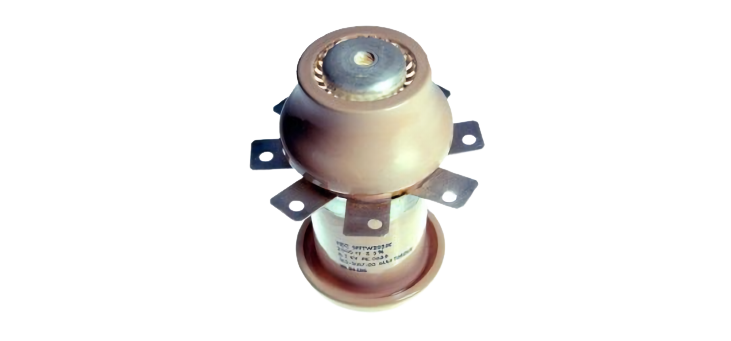

SPFT Series - Feed Thru Ceramic Capacitors
The SPFT Series Feed-Thru capacitors are carefully designed, hollow ceramic tubes used to communicate power and low frequency signals between high-power RF chassis and other RF-radiating elements. These capacitors provide an elegantly simple means of bypassing massive amounts of RF energy to ground to maintain system signal integrity. They are built upon high quality Class I dielectrics, assuring a low dissipation factor and high bandwidth. SPFT feed-thru capacitors find application in RF heating, power transmitters and high voltage filters.
Products
Data Sheets
Products
| Part # | Capacitance | Material | Rated Voltage | Physical Length |
| SPFTW122KA | 1200 ± 5% pF | N330 | 8.5 kV | 4.565 in |
| SPFTW202JK | 2000 ± 5% pF | N470 | 8.5 kV | 5.156 in |
| SPFT1151ME | 150 ± 20% pF | NP0 | 10 kV | 3.465 in |
| SPFT1331MD | 330 ± 20% pF | NP0 | 10 kV | 3.465 in |
| SPFT1431ME | 430 ± 20% pF | NP0 | 10 kV | 3.465 in |
| SPFT1501MD | 500 ± 20% pF | NP0 | 10 kV | 3.465 in |
| SPFT1102MC | 1000 ± 20% pF | N5250 | 10 kV | 3.465 in |
| SPFT112AMD | 1250 ± 20% pF | N800 | 10 kV | 3.465 in |
| SPFT1202ME | 2000 ± 20% pF | N2200 | 10 kV | 3.465 in |
| SPFT1202MH | 2000 ± 20% pF | N5250 | 10 kV | 3.860 in |
| SPFT1103PA | 10.000 +80 -20% pF | N5250 | 10 kV | 5.220 in |
| SPFT2402MB | 4000 ± 20% pF | N2200 | 12 kV | 6.105 in |
| SPFT2152PC | 1500 GMV pF | N3300 | 15 kV | 4.200 in |
| SPFT2202MF | 2000 ± 20% pF | N5250 | 15 kV | 3.860 in |
| SPFT3202MA | 2000 ± 20% pF | N3300 | 20 kV | 4.875 in |
| SPFT4501MA | 500 ± 20% pF | N3300 | 25 kV | 5.625 in |
| SPFT4202MA | 2000 ± 20% pF | N3300 | 25 kV | 5.625 in |
| SPFT7202MA | 2000 ± 2% pF | N3300 | 40 kV | 7.500 in |
