High Voltage Thyratrons

The TDI-series of cold-cathode grounded grid thyratrons provides a unique high current, high charge transfer capability with superior time stability and is currently employed for emerging pulsed power applications with peak power up to hundreds of megawatt due to easy assembling in parallel layout.
The TPI-series of cold hollow cathode thyratrons with ceramic/metal envelope, featuring sub-nanosecond jitter, low firing time and jitter. Suitable for switching high power at moderate and high pulse repetition rates in a variety of high peak power applications. Absence of a thermionic cathode facilitates application of the switches in circuits with both electrodes und high or transient voltages.

Slide

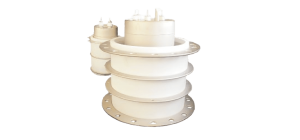

TDI Series:

• up to 150 kV
• up to 200 kA peak
• up to 41 kJ peak per shot

Slide

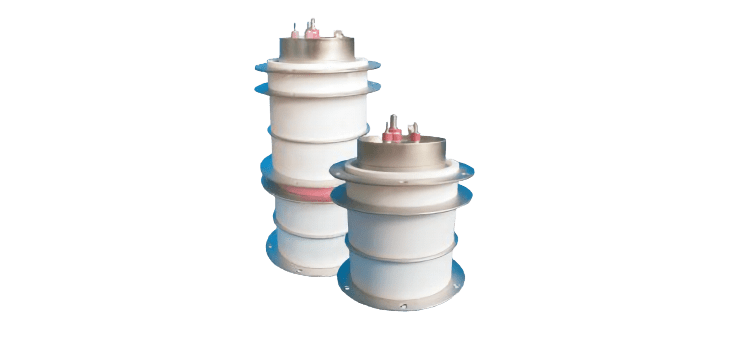

TPI Series:

• up to 100 kV
• up to 10 kA peak
• up to 0.5 A average

Slide

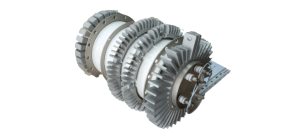

TGI Series:

• up to 75 kV
• up to 10 kA peak
• up to 30 A average

Slide

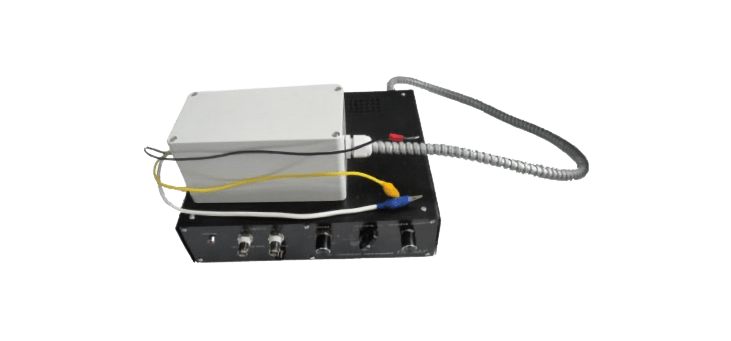

Thyratron Driver:

• For TDI Series
• For TPI Series

Products

Data Sheets

Products

TDI Series Pseudospark Switches


Model	Pk. Anode Voltage	Pk. Anode Current	Anode current Pulse Duration	Pk. Engery per shot
TDI1-50k/16	20 kV	70 kA	100 µsec	2 kJ
TDI1-50k/35	45 kV	70 kA	100 µsec	2 kJ
TDI1-50k/25	25 kV	100 kA	100 µsec	15 kJ
TDI1-50k/50	50 kV	100 kA	100 µsec	15 kJ
TDI1-200k/25	25 kV	200 kA	500 µsec	40 kJ
TDI4-100k/45	45 kV	150 kA	100 µsec	20 kJ
TDI4-150k/50	50 kV	200 kA	500 µsec	40 kJ
TDI4-100k/75	75 kV	100 kA	100 µsec	15 kJ
TDI1-100k/150	150 kV	100 kA	100 µsec	15 kJ

TPI Series Pseudospark Switches


Model	Pk. Anode Voltage	Pk. Anode Current	Anode current Pulse Duration	Average Current
TPI1-0.2k/12	15 kV	1 kA	10 µsec	0.15 A
TPI1-1k/20	25 kV	3 kA	10 µsec	0.15 A
TPI1-1k/35	40 kV	3 kA	10 µsec	0.15 A
TPI1-10k/20	28 kV	10 kA	10 µsec	0.5 A
TPI1-10k/50	60 kV	10 kA	10 µsec	0.5 A
TPI1-10k/75	80 kV	10 kA	10 µsec	0.5 A
TPI1-5k/100	100 kV	5 kA	10 µsec	0.1 A

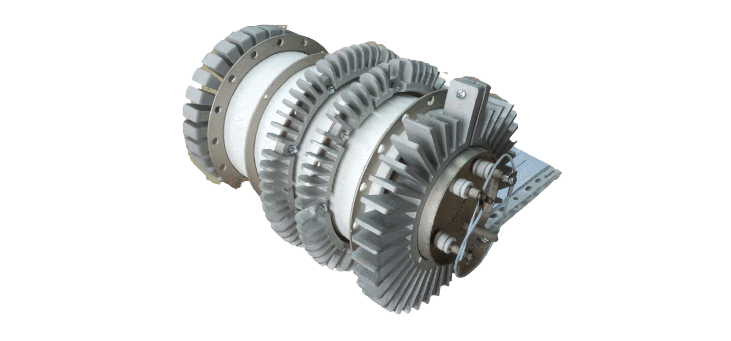

Thermionic Cathode Thyratrons


Model		Anode voltage	Peak Anode Current	Average Anode Current
TGI1-0.5k/20	Triode 1-gap	5 – 25 kV	0.5 kA	0.5 A
TGI2-0.5k/25	Triode 1-gap	5 – 25 kV	1 kA	1 A
TGI1-3k/30	Triode 1-gap	1 – 30 kV	3 kA	3 A
TGI2-3k/30	Tetrode 1-gap	1 – 30 kV	3 kA	3 A
TGI1-5k/50	Triode 1-gap	2 – 50 kV	5 kA	3 A
TGI2-5k/50	Tetrode 2-gap	2 – 50 kV	5 kA	3 A
TGI2-10k/50	Tetrode 2-gap	5 – 50 kV	10 kA	10 / 30 A
TGI2-5k/75	Tetrode 3-gap	5 – 75 kV	5 kA	3 A

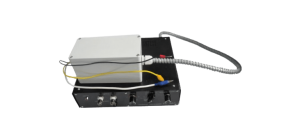

Thyratron Drivers


Model	Application	Outputs (Trigger)	Heater
PB-3D	TDI-thyratrons	4 – 6 kV negative	Reservoir 4-7 V
PB-5P	TPI-thyratrons	Grid 1 DC priming	Reservoir 3.5-7.5 V
		Grid 1 pulse 2 kV
		Grid 1 pulse 4 kV
PB-7H	TGI-thyratrons	Grid 1 DC priming	Reservoir 3-7.5 V
		Grid 2 pulse 2 kV

Data Sheets

High Voltage Thyratrons

TDI Series Pseudospark Switches

TPI Series Pseudospark Switches

Thermionic Cathode Thyratrons

Thyratron Drivers
