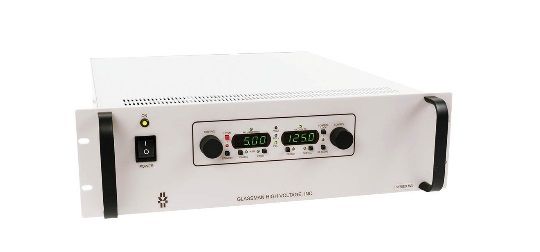

WJ Series - High Voltage Power Supply
The WJ Series of 600 watt high voltage supplies feature flexible embedded controls with low ripple and noise. They are air insulated, fast response units, with tight regulation and extremely low arc discharge currents.
Typical Applications
- plasma coating
- beam steering
- laboratory environment
- industrial process
| Series | Max. Output Voltage | Max. Output Current | Max. Output Power | Input Voltage | Ripple better than |
| WJ70X8.6 | 0 – 70 kV | 8.6 mA | 600 W | Single Phase | 0.1% |
| WJ70P8.6 | 0 – 70 kV | 8.6 mA | 600 W | Single Phase | 0.1% |
| WJ70N8.6 | 0 – 70 kV | 8.6 mA | 600 W | Single Phase | 0.1% |
| WJ70R8.6 | 0 – 70 kV | 8.6 mA | 600 W | Single Phase | 0.1% |
| WJ80X7.5 | 0 – 80 kV | 7.5 mA | 600 W | Single Phase | 0.1% |
| WJ80P7.5 | 0 – 80 kV | 7.5 mA | 600 W | Single Phase | 0.1% |
| WJ80N7.5 | 0 – 80 kV | 7.5 mA | 600 W | Single Phase | 0.1% |
| WJ80R7.5 | 0 – 80 kV | 7.5 mA | 600 W | Single Phase | 0.1% |
| WJ100X6 | 0 – 100 kV | 6 mA | 600 W | Single Phase | 0.1% |
| WJ100P6 | 0 – 100 kV | 6 mA | 600 W | Single Phase | 0.1% |
| WJ100N6 | 0 – 100 kV | 6 mA | 600 W | Single Phase | 0.1% |
| WJ100R6 | 0 – 100 kV | 6 mA | 600 W | Single Phase | 0.1% |
| WJ125X5 | 0 – 125 kV | 5 mA | 600 W | Single Phase | 0.1% |
| WJ125P5 | 0 – 125 kV | 5 mA | 600 W | Single Phase | 0.1% |
| WJ125N5 | 0 – 125 kV | 5 mA | 600 W | Single Phase | 0.1% |
| WJ125R5 | 0 – 125 kV | 5 mA | 600 W | Single Phase | 0.1% |
Input Voltage Output Voltage Output Power | Polarity Operating Ambient Temperature Ripple | Programming Standards |
