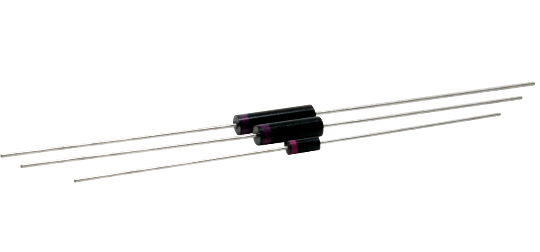

XOE Axial Lead High Voltage Diodes
Our XOE diodes have been developed to deliver the most optimised diode possible for high voltage applications.The benefits of XOE include higher current capabilities, lower voltage drop, reduced heat dissipation, better breakdown immunity from transitions into the avalanche region, and enhanced reliability for end user products and a cost effective and easy migration path for existing circuit board platforms.
Features:
- Very low forward voltage drop
- Highest current for case size
- Fast reverse recovery time
| Repetitive Peak Reverse Voltage | Average Forward Current | Forward Voltage Drop | Surge Current | Reverse Recovery Time | |
| XNV Series | 2 - 5 kV | 120 - 250 mA | 5.4 - 10.3 V | 5 A | 70 nS |
| XGA Series | 2 - 10 kV | 100 - 340 mA | 5.4 - 18 V | 5 A | 70 nS |
| XGF Series | 6 - 30 kV | 110 - 350 mA | 7.4 - 36 V | 10 - 30 A | 80 nS |
